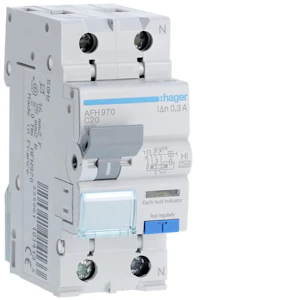

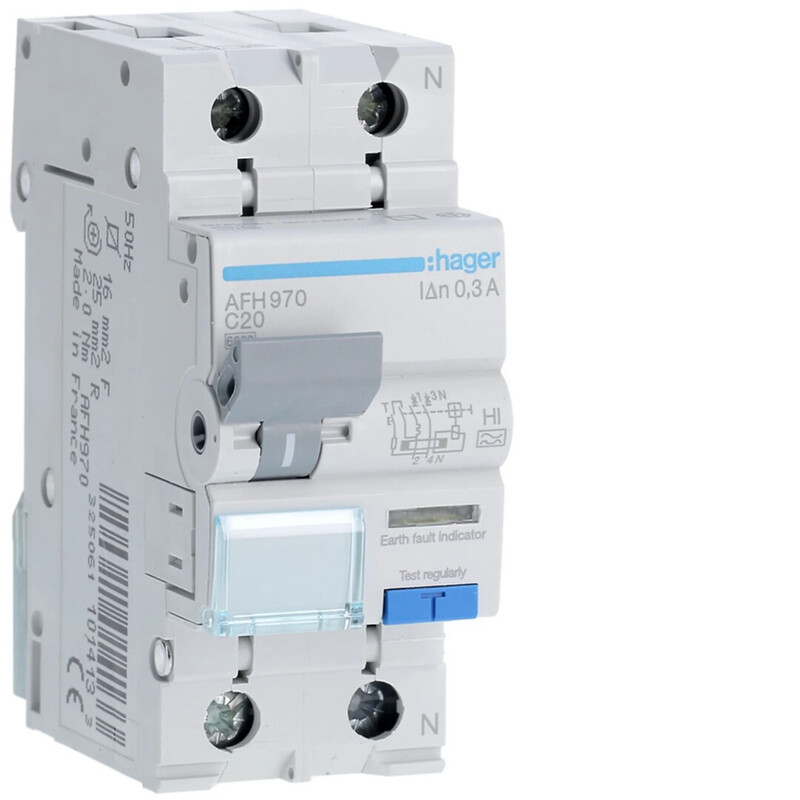

RCBO AFH970 2X20A 300MA A-HI C-CURV
Product code
3263815
RCBO 1P+N 6kA C-20A 300mA HI
Residual current device according to DIN VDE 0664 part 20 / EN61009-1 and DIN VDE 0664 part 21 / EN61009-2-1, with HI interference protection. Touch protection according to DIN VDE 0660 part 514. Double terminals on the bottom for busbar and cable connections, blue test button and fault current indication on the front. Easy to replace and add to busbar installations thanks to the practical DIN rail mounting. Additional modules can be retrofitted to the device. The device is equipped with a hinged label window for group labeling. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Earth leakage circuit breaker (EC000905)
Number of poles (total)2
Number of protected poles1
Rated voltage240 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated current20 A
Rated fault current0.3 A
Leakage current typeA
Current limiting class3
Rated short-circuit breaking capacity according to IEC 60947-26 kA
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
Disconnection characteristicUndelayed
Surge current capacity3 kA
Voltage typeAC
Frequency50 Hz
Product codes
SAPALN737
STK3263815
PLC3263815
GTIN/EAN3250611014133
Manufacturer part numberAFH970
Vendor material number3263815
Basic information
Package measurements (L x W x H)40 x 100 x 80 mm
Package volume0.32 l
Package weight0.24 kg
Base uniteach
Package units1 / 60 / 1440
Package contents–
UNSPSC39121614
BrandHAGER
VendorUTU OY
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1325
GWP, uniteach
Source for GWP dataEPD
