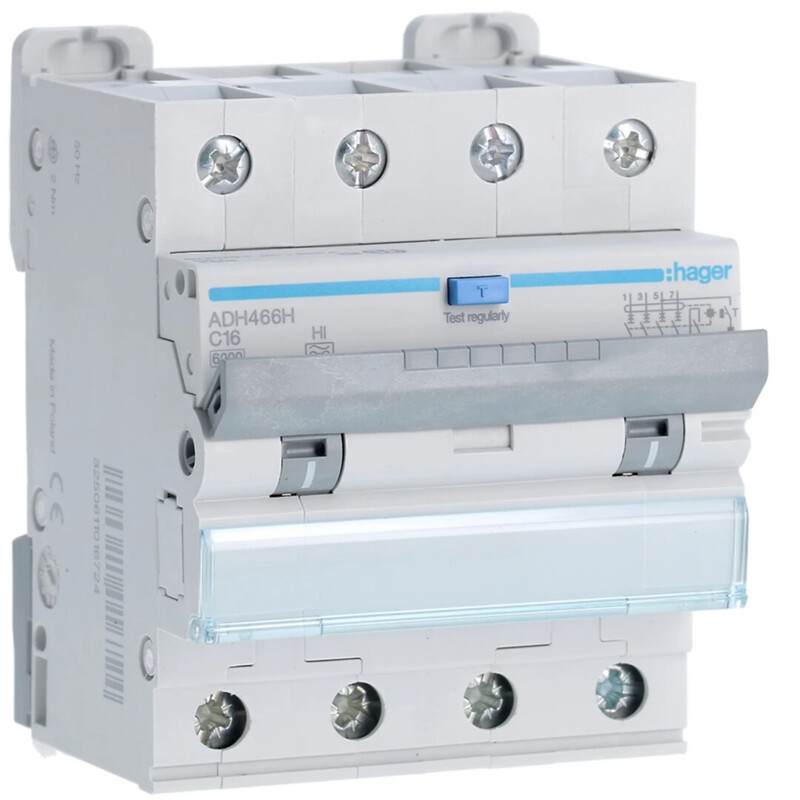

RCCB ADH466H 30MA A-HI/4X16A C 6KA
Product code
3246221
Residual current device with HI fault protection according to EN61009-1 and EN61009-2-1, 4-pole for 400V AC circuits and residual current protection in a compact enclosure. Touch protection according to IP2x DIN VDE 0106 part 100. Double terminals on the bottom for busbar and conductor connections, blue test button and fault indication on the front. Easy to replace and add to busbar installations thanks to the practical DIN rail mounting. Additional modules can be retrofitted to the device. The device is equipped with a hinged label window for group labeling. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Earth leakage circuit breaker (EC000905)
Number of poles (total)4
Number of protected poles4
Rated voltage400 V
Rated current16 A
Rated fault current0.03 A
Leakage current typeA
Current limiting class3
Voltage typeAC
Frequency50 Hz
Release characteristicC
Concurrently switching neutral conductoryes
Overvoltage category3
Pollution degree2
Width in number of modular spacings4
Built-in depth70 mm
Product codes
SAPCFS633
STK3246221
PLC3246221
GTIN/EAN3250611016724
Manufacturer part numberADH466H
Vendor material number3246221
Basic information
Package measurements (L x W x H)80 x 80 x 100 mm
Package volume0.64 l
Package weight0.67 kg
Base uniteach
Package units1 / 33 / 792
Package contents–
UNSPSC39121614
BrandHAGER
VendorUTU OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.3699
GWP, uniteach
Source for GWP dataEPD
