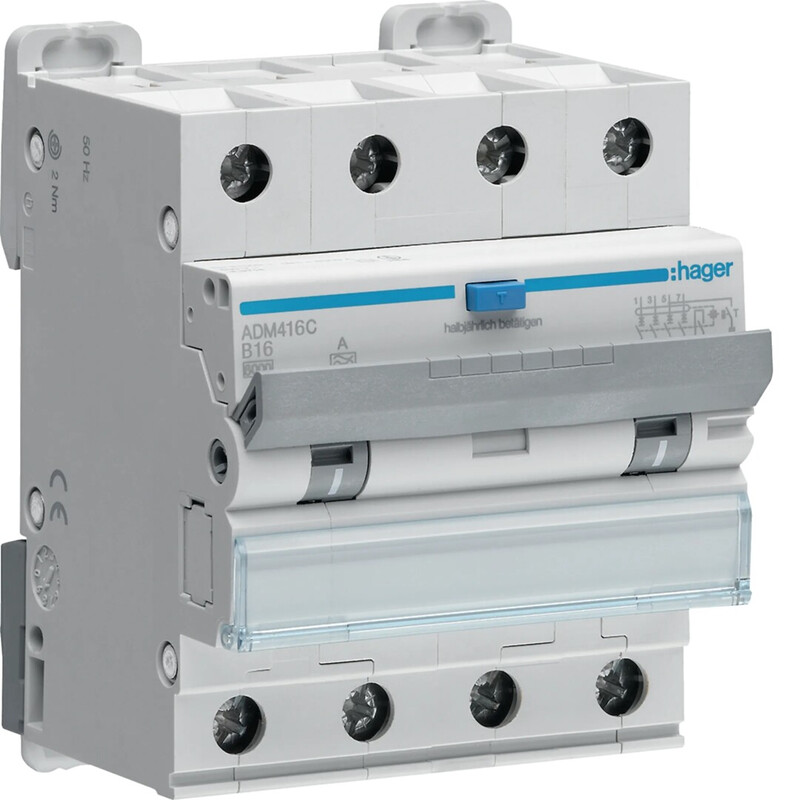

RCCB ADM416C 30mA A/4x16A B-c. 6kA
Product code
3246155
RCBO 4P 6kA B-16A 30mA A
Residual current circuit breaker according to EN61009-1 and EN61009-2-1, 4-pole for 400V AC circuits and residual current protection in a compact enclosure. Touch protection according to IP2x DIN VDE 0106 part 100. Double terminals on the bottom for busbar and conductor connections, blue test button and residual current indication on the front. Easy to replace and add to busbar installations thanks to the practical DIN rail mounting. Additional modules can be retrofitted to the device. The device is equipped with a hinged label window for group labeling. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Earth leakage circuit breaker (EC000905)
Number of poles (total)4
Number of protected poles4
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated current16 A
Rated fault current0.03 A
Leakage current typeA
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
Disconnection characteristicUndelayed
Surge current capacity3 kA
Voltage typeAC
Frequency50 Hz
Release characteristicB
Product codes
SAPCAP278
STK3246155
PLC3246155
GTIN/EAN3250611020226
Manufacturer part numberADM416C
Vendor material number3246155
Basic information
Package measurements (L x W x H)80 x 80 x 100 mm
Package volume0.64 l
Package weight0.55 kg
Base uniteach
Package units1 / 33 / 792
Package contents–
UNSPSC39121614
BrandHAGER
VendorUTU OY
