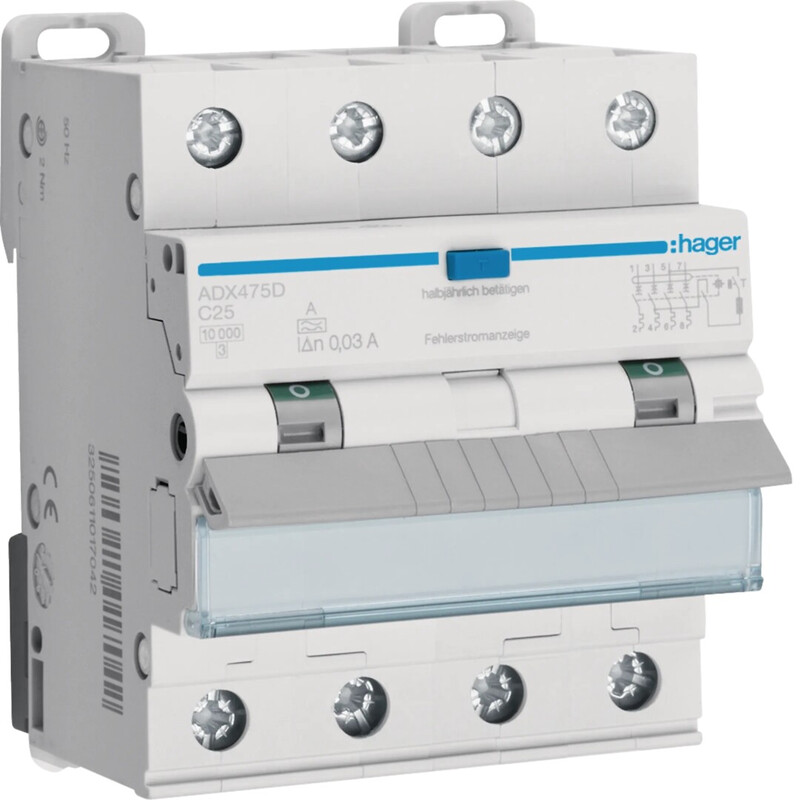

RCCB ADX475D 30MA A/4X25A C-C. 10KA
Product code
3246266
Residual current circuit breaker according to DIN VDE 0664-20 / EN61009-1, 4-pole for 400V AC circuits with residual current protection in a compact enclosure. Touch protection IP2x according to DIN VDE 0106 part 100. Double terminals on the bottom for busbar and conductor connections, blue test button and residual current indication on the front. Easy to replace and add to busbar installations thanks to the practical DIN-rail mounting. Additional modules can be retrofitted to the device. The device is equipped with a hinged label window for group labeling. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Earth leakage circuit breaker (EC000905)
Number of poles (total)4
Number of protected poles4
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated current25 A
Rated fault current0.03 A
Leakage current typeA
Current limiting class3
Power loss12.3 W
Rated short-circuit breaking capacity Icn according to EN 61009-110 kA
Disconnection characteristicUndelayed
Surge current capacity3 kA
Voltage typeAC
Frequency50 Hz
Product codes
SAPCCX917
STK3246266
PLC3246266
GTIN/EAN3250611017066
Manufacturer part numberADX475D
Vendor material number3246266
Basic information
Package measurements (L x W x H)80 x 80 x 100 mm
Package volume0.64 l
Package weight0.69 kg
Base uniteach
Package units1 / 33 / 792
Package contents–
UNSPSC39121614
BrandHAGER
VendorUTU OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.3034
GWP, uniteach
Source for GWP dataEPD
