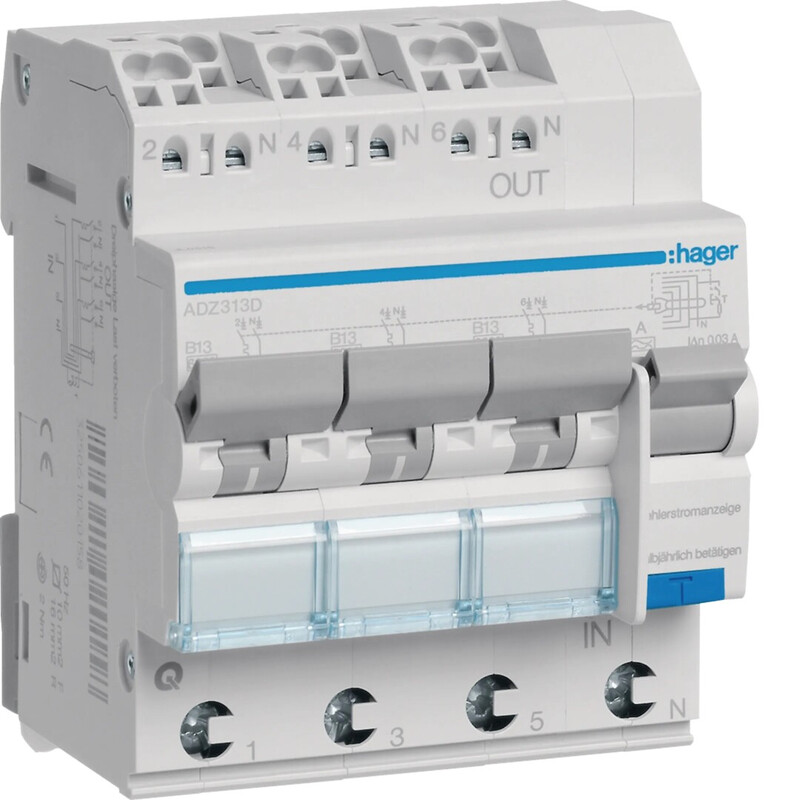

RCCB ADZ313D 30MA A/3XL+N B-13A 6KA

Residual current device EN61009-1 with three single-phase circuit protection outputs at 230VAC and combined residual current protection in a compact enclosure. QuickConnect spring terminals according to DIN EN 60898-1 and VDE 0641-11 for outputs up to 16 A and supply side up to 63 A. Touch protection IP2x according to DIN VDE 0106 part 100. Double terminals on the bottom for busbar and cable connections, blue test button and residual current indication on the front. Easy to replace and add to busbar installations thanks to the practical DIN rail mounting. The device is equipped with a hinged label window for group labeling. This product description is an automated translation of the original Finnish description.
