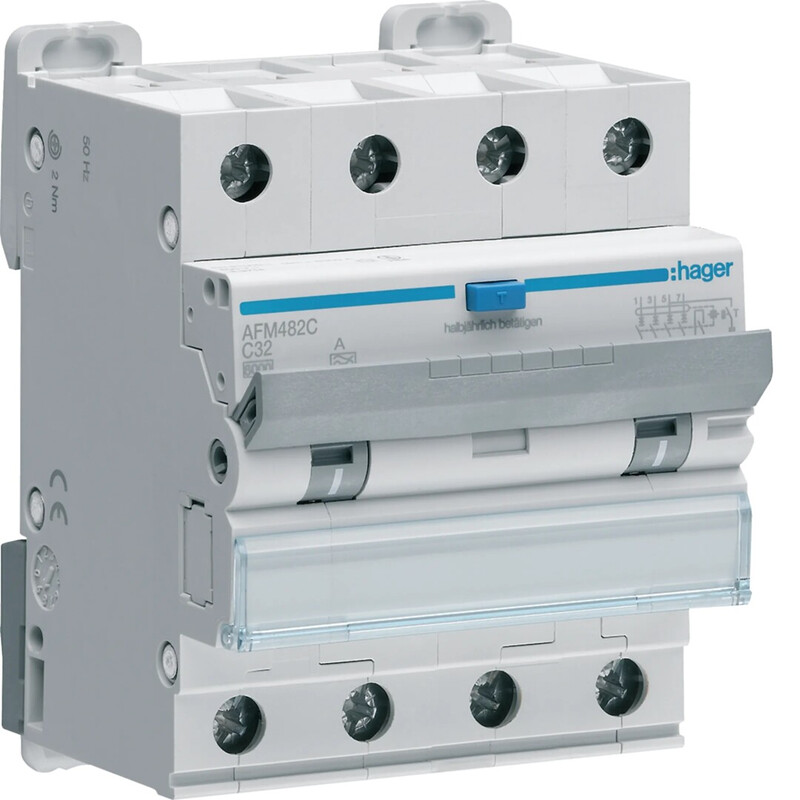

RCCB AFM482C 300MA A/4X32A C-C. 6KA
Product code
3246183
Residual current circuit breaker according to EN61009-1 and EN61009-2-1, 4-pole for 400V AC circuits and residual current protection in a compact enclosure. Touch protection according to IP2x DIN VDE 0106 part 100. Double terminals on the bottom for busbar and conductor connections, blue test button and residual current indication on the front. Easy to replace and add to busbar installations thanks to the practical DIN rail mounting. Additional modules can be retrofitted to the device. The device is equipped with a hinged label window for group labeling. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Distributor assembly with combination RCCB/MCB (EC002281)
Rated current32 A
Rated fault current0.3 mA
Number of protected poles4
Concurrently switching neutral conductoryes
Release characteristicC
Breaking capacity6 kA
Number of earth leakage circuit breakers1
Height83.5 mm
Width70.8 mm
Depth76.15 mm
Product codes
SAPCFS610
STK3246183
PLC3246183
GTIN/EAN3250611020493
Manufacturer part numberAFM482C
Vendor material number3246183
Basic information
Package measurements (L x W x H)80 x 80 x 100 mm
Package volume0.64 l
Package weight0.55 kg
Base uniteach
Package units1 / 36 / 864
Package contents–
UNSPSC39121614
BrandHAGER
VendorUTU OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.2418
GWP, uniteach
Source for GWP dataEPD
