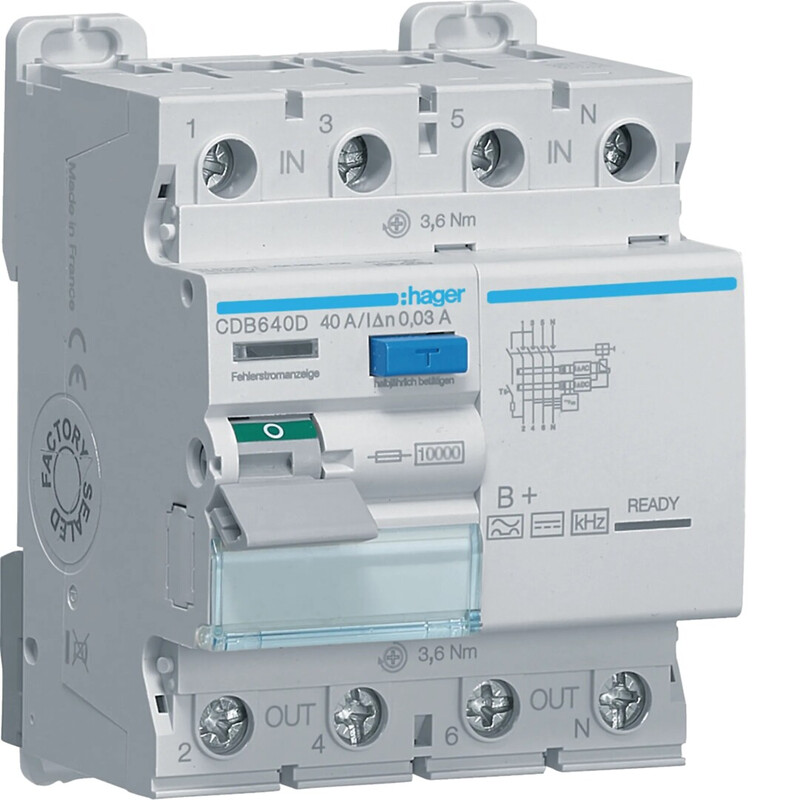

RCCB CDB640D 30MA B+/4X40A 10KA
Product code
3246515
Residual current circuit breakers (RCD) according to EN 61008-1, DIN EN 61008-2-1; VDE 0664 parts 10 and 11, protection class IP2x according to DIN VDE 0106 part 100. Can be equipped with retrofittable additional modules (tool-free installation). Frame terminals for connection of input and output cables, double connector for connection of bottom-mounted rail-type busbars. Blue test button for testing the device's function. Hinged cover with label window for group labeling. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) (EC000003)
Number of poles4
Rated voltage400 V
Rated current40 A
Rated fault current0.03 A
Rated insulation voltage Ui400 V
Rated impulse withstand voltage Uimp4 kV
Power loss6.77 W
Mounting methodDIN rail
Leakage current typeB+
Selective protectionno
Short-time delayed trippingno
Short-circuit breaking capacity (Icw)10 kA
Surge current capacity5 kA
Voltage typeAC
With interlocking deviceyes
Product codes
SAPCVD666
STK3246515
PLC3246515
GTIN/EAN3250611627678
Manufacturer part numberCDB640D
Vendor material number3246515
Basic information
Package measurements (L x W x H)75 x 72 x 95 mm
Package volume0.513 l
Package weight0.399 kg
Base uniteach
Package units1 / 33 / 792
Package contents–
UNSPSCCDB440E
BrandHAGER
VendorUTU OY
Documents (6)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.533
GWP, uniteach
Source for GWP dataEPD
