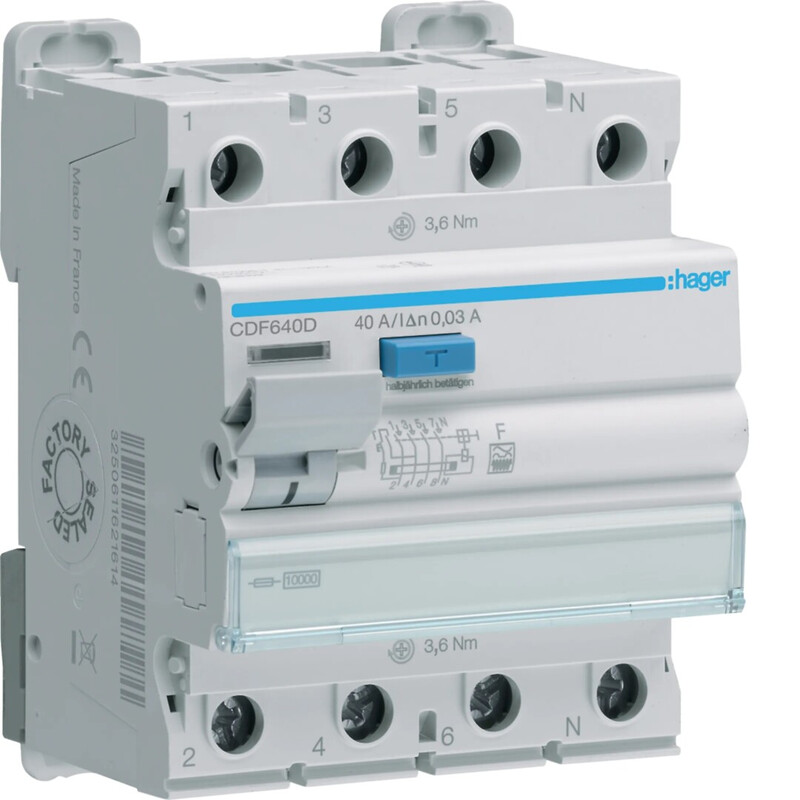

RCCB CDF640D 30MA F/4X40A 10KA
Product code
3246530
Residual current circuit breakers (RCD) according to EN 61008-1, DIN EN 61008-2-1; VDE 0664 parts 10 and 11, protection class IP2x according to DIN VDE 0106 part 100. Can be equipped with retrofittable additional modules (tool-free installation). Frame terminals for connection of input and output cables, double connector for connection of bottom-mounted rail-type busbars. Blue test button for testing the device's function. Hinged cover with label window for group labeling. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) (EC000003)
Number of poles4
Rated voltage400 V
Rated current40 A
Rated fault current0.03 A
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Power loss4.39 W
Mounting methodDIN rail
Leakage current typeF
Selective protectionno
Short-time delayed trippingyes
Short-circuit breaking capacity (Icw)10 kA
Surge current capacity5 kA
Voltage typeAC
With interlocking deviceyes
Product codes
SAPCMM195
STK3246530
PLC3246530
GTIN/EAN3250611621614
Manufacturer part numberCDF640D
Vendor material number3246530
Basic information
Package measurements (L x W x H)75 x 95 x 72 mm
Package volume0.513 l
Package weight0.405 kg
Base uniteach
Package units1 / 33 / 792
Package contents–
UNSPSC39121614
BrandHAGER
VendorUTU OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.541
GWP, uniteach
Source for GWP dataEPD
