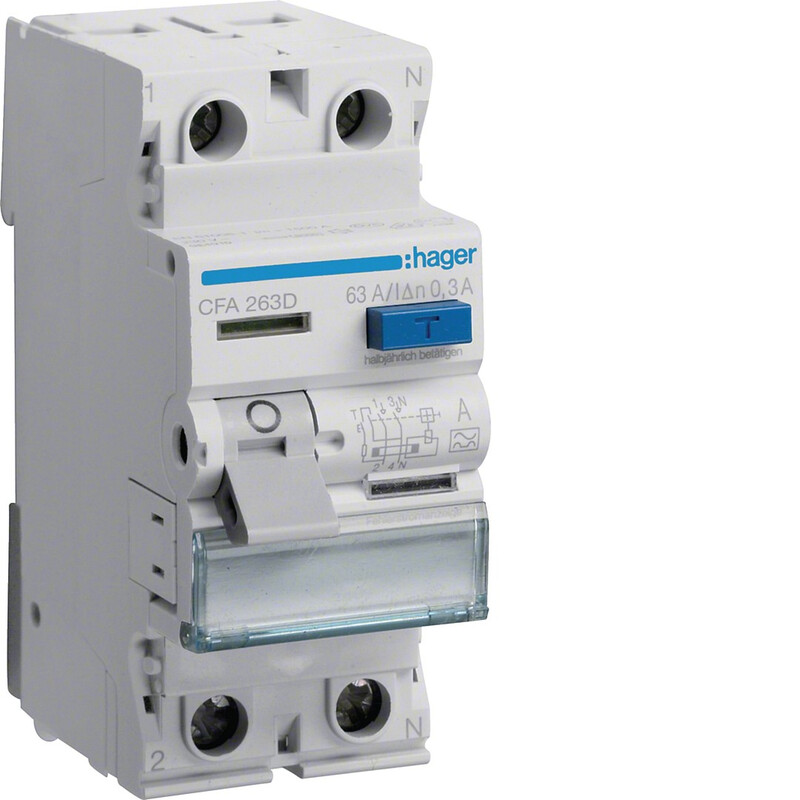

RCCB CFA263 300MA A/2X63A
Product code
3246653
No product description available.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) (EC000003)
Number of poles2
Rated voltage230 V
Rated current63 A
Rated fault current0.3 A
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Mounting methodDIN rail
Leakage current typeA
Selective protectionno
Short-time delayed trippingno
Short-circuit breaking capacity (Icw)6 kA
Surge current capacity0.25 kA
Voltage typeAC
Frequency50 Hz
Additional equipment possibleyes
Product codes
SAPDNS579
STK3246653
PLC3246653
GTIN/EAN3250611610175
Manufacturer part numberCFA263D
Vendor material number3246653
Basic information
Package measurements (L x W x H)40 x 100 x 80 mm
Package volume0.32 l
Package weight0.2 kg
Base uniteach
Package units1 / 60 / 60 / 1440
Package contents–
UNSPSC39121614
BrandHAGER
VendorUTU OY
Documents (5)
Certificates
Images
Brochures & documents
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.2672
