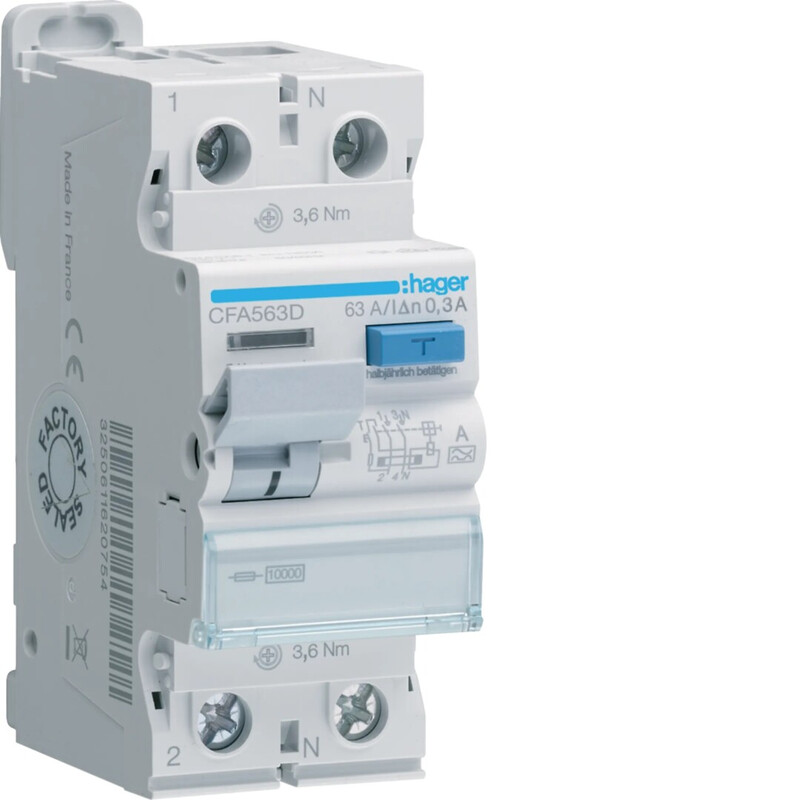

RCCB CFA563D 300MA A/2X63A 10KA
Product code
3246451
Residual current circuit breakers (RCD) according to EN 61008-1, DIN EN 61008-2-1; VDE 0664 parts 10 and 11, protection class IP2x according to DIN VDE 0106 part 100. Can be equipped with retrofittable additional modules (tool-free installation). Frame terminals for connection of input and output cables, double connector for connection of bottom-mounted rail-type busbars. Blue test button for testing the device's function. Hinged cover with label window for group labeling. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) (EC000003)
Number of poles2
Rated voltage230 V
Rated current63 A
Rated fault current0.3 A
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Power loss6.64 W
Mounting methodDIN rail
Leakage current typeA
Selective protectionno
Short-time delayed trippingno
Short-circuit breaking capacity (Icw)10 kA
Surge current capacity3 kA
Voltage typeAC
With interlocking deviceyes
Product codes
SAPCLH991
STK3246451
PLC3246451
GTIN/EAN3250611620778
Manufacturer part numberCFA563D
Vendor material number3246451
Basic information
Package measurements (L x W x H)36 x 95 x 75 mm
Package volume0.256 l
Package weight0.245 kg
Base uniteach
Package units1 / 60 / 1440
Package contents–
UNSPSCCFA263N
BrandHAGER
VendorUTU OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.3273
GWP, uniteach
Source for GWP dataEPD
