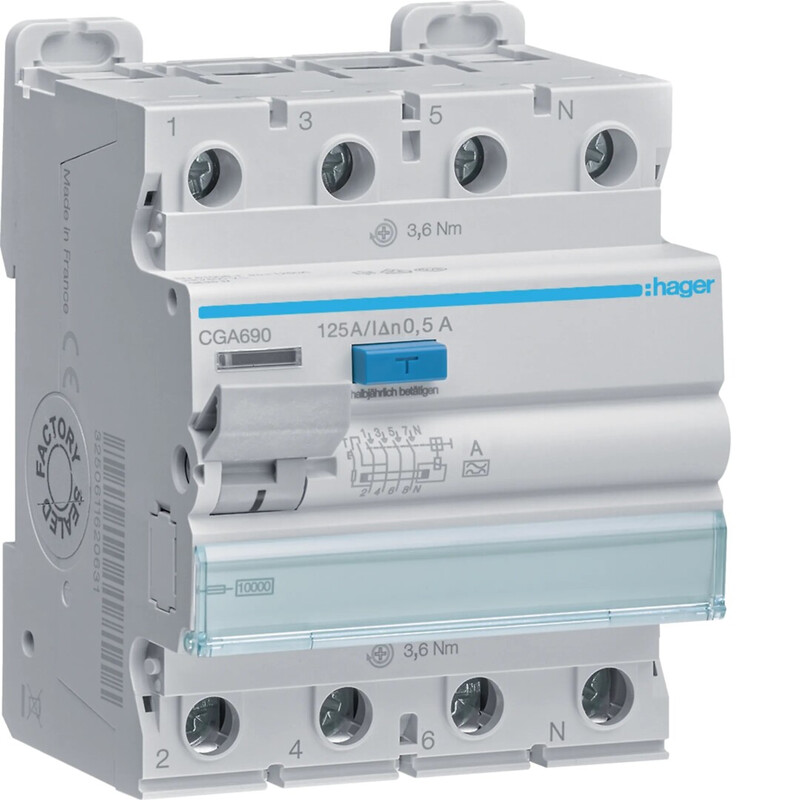

RCCB CGA690 500MA A-S/4X125A 10KA
Product code
3246538
Residual current device (RCD) according to EN 61008-1, DIN EN 61008-2-1; VDE 0664 parts 10 + 11, protection class IP2x according to DIN VDE 0106 part 100. Can be equipped with retrofittable additional modules (tool-free installation). Frame terminals for connection of input and output cables, double connector for connection of bottom-mounted rail-type busbars. Blue test button for testing the device's function. Hinged cover with label window for group labeling. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) (EC000003)
Number of poles4
Rated voltage415 V
Rated current125 A
Rated fault current0.5 A
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Power loss29.2 W
Mounting methodDIN rail
Leakage current typeA
Selective protectionno
Short-time delayed trippingno
Short-circuit breaking capacity (Icw)10 kA
Surge current capacity3 kA
Voltage typeAC
With interlocking deviceyes
Product codes
SAPCLH983
STK3246538
PLC3246538
GTIN/EAN3250611624424
Manufacturer part numberCGA690
Vendor material number3246538
Basic information
Package measurements (L x W x H)70 x 72 x 86 mm
Package volume0.433 l
Package weight0.369 kg
Base uniteach
Package units1 / 33 / 792
Package contents–
UNSPSC39121614
BrandHAGER
VendorUTU OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.4929
GWP, uniteach
Source for GWP dataEPD
