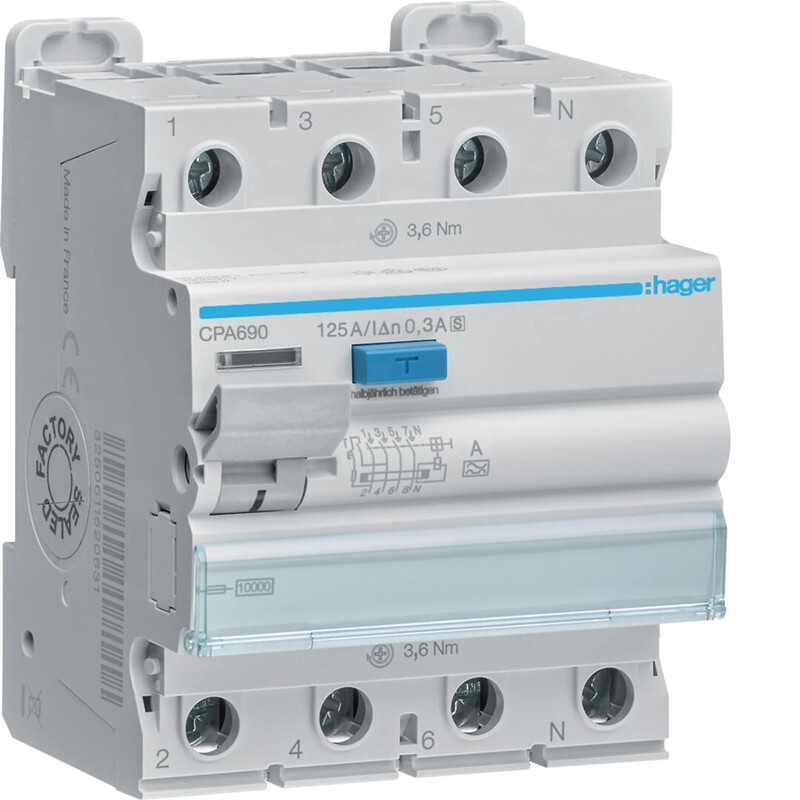

RCCB CPA690 300MA A-S/4X125A 10KA
Product code
3246539
Residual current circuit breakers (RCD) according to EN 61008-1, DIN EN 61008-2-1; VDE 0664 parts 10 and 11, protection class IP2x according to DIN VDE 0106 part 100. Can be equipped with retrofittable additional modules (tool-free installation). Frame terminals for connection of input and output cables, double connector for connection of bottom-mounted rail-type busbars. Blue test button for testing the device's function. Hinged cover with label window for group labeling. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) (EC000003)
Number of poles4
Rated voltage415 V
Rated current125 A
Rated fault current300 A
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Mounting methodDIN rail
Leakage current typeA
Selective protectionyes
Short-time delayed trippingno
Short-circuit breaking capacity (Icw)10 kA
Surge current capacity3 kA
Voltage typeAC
With interlocking deviceyes
Frequency50 Hz
Product codes
SAPCLH986
STK3246539
PLC3246539
GTIN/EAN3250611624431
Manufacturer part numberCPA690
Vendor material number3246539
Basic information
Package measurements (L x W x H)70 x 72 x 86 mm
Package volume0.433 l
Package weight0.369 kg
Base uniteach
Package units1 / 33 / 792
Package contents–
UNSPSC39121614
BrandHAGER
VendorUTU OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.4929
GWP, uniteach
Source for GWP dataEPD
