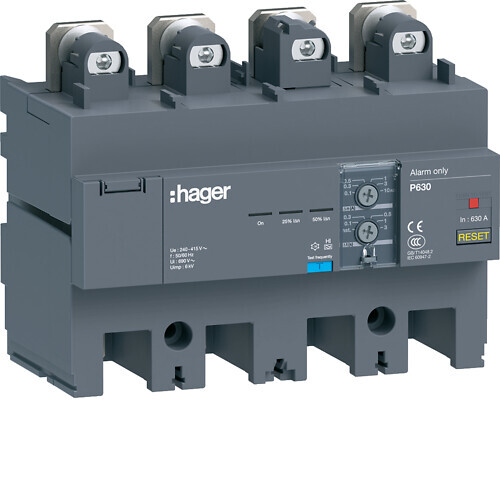

RCD BLOCK P630 4P 630A 0.1-10A ALARM
Product code
3637868
Residual current device for alarm operation p630 4-pole In 630A rated. 100mA - 10A. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) module (EC002297)
Nominal voltage220-415 V
Nominal current630 A
Rated fault current adjustableyes
Rated fault current0.1-10 A
Max. delay time3000 ms
Delay adjustableyes
Number of poles4
Leakage current typeA
Surge current capacity3 kA
Frequency50/60 Hz
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Power loss34.3 W
Anti-nuisance tripping versionyes
With interlocking deviceyes
Product codes
SAPDAG666
STK3637868
PLC3637868
GTIN/EAN3250613150976
Manufacturer part numberHBW630L
Vendor material number3637868
Basic information

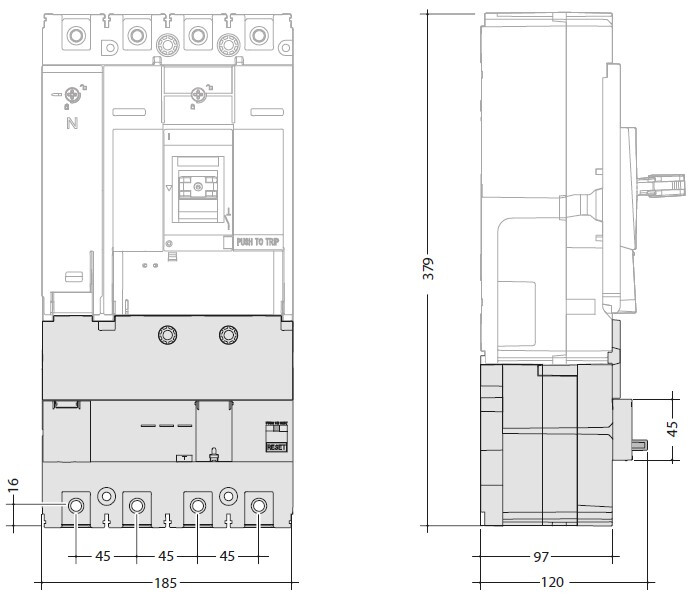

Package measurements (L x W x H)145 x 185 x 120 mm
Package volume3.219 l
Package weight3.282 kg
Base uniteach
Package units1 / 102
Package contents–
UNSPSC39121308
BrandHAGER
VendorUTU OY
Documents (6)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)176.9512
GWP, uniteach
Source for GWP dataEPD
