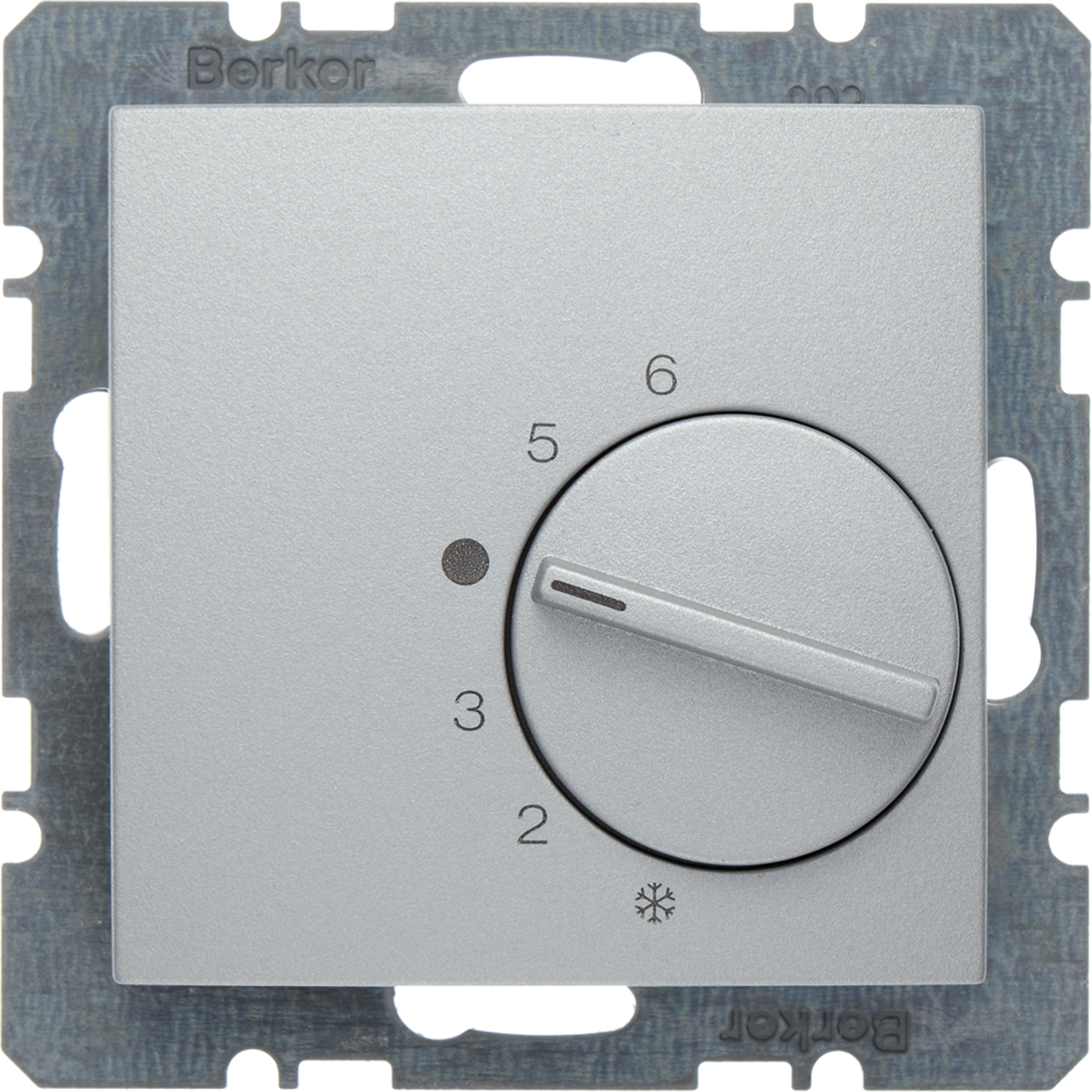

ROOM THERMOSTAT 5/30 1CO 10A ALU
Product code
2613523
Room thermostat with changeover contact and central plate featuring settings markings, adjustment knob, and temperature limit. Suitable for controlling heating and cooling, e.g., on/off devices, with mounting claws for panel mounting. Connection requires spring terminals and a neutral conductor. The thermostat switches the contact state when the set temperature is reached. Installation into a panel cutout. Material: halogen-free thermoplastic plastic. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Room thermostat (EC010927)
ModelOn/Off
Type of power supply230 V AC
Connection3-wire
With receiverno
Measuring range5 - 30 °C
External sensorno
Thermal feedbackSeries
Differential value0.5-0.5 K
Temperature readableno
Sensor/feeler typeBimetal
Mounting methodFlush-mounted
With displayno
Contact typeChange-over contact (NO/NC)
Max. contact voltage250 V
Degree of protection (IP)IP20
Product codes
SAPASK909
STK2613523
PLC2613523
GTIN/EAN4011334309659
Manufacturer part number20261404
Vendor material number2613523
Basic information
Package measurements (L x W x H)81 x 60 x 81 mm
Package volume0.394 l
Package weight0.096 kg
Base uniteach
Package units1 / 1920
Package contents–
UNSPSC39121523
BrandHAGER
VendorUTU OY
