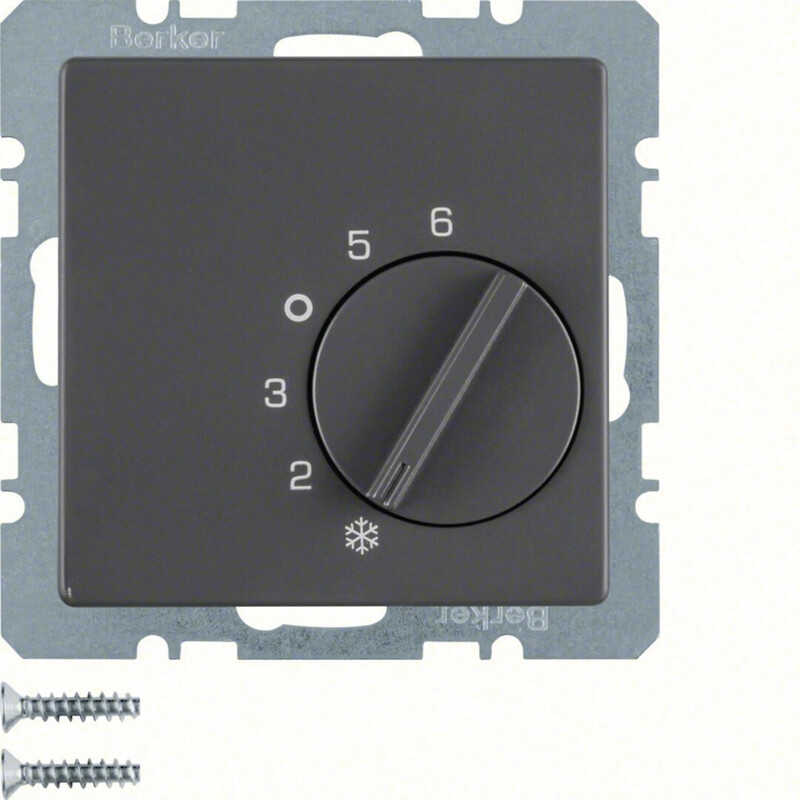

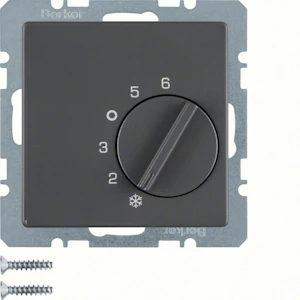

ROOM THERMOSTAT 5/30 1CO 10A ANT
Product code
2613399
Room thermostat with changeover contact and central plate featuring settings markings, adjustment knob, and temperature limit. Suitable for controlling heating and cooling, e.g., on/off devices, with mounting claws for panel mounting. Connection requires spring terminals and a neutral conductor. The thermostat switches the contact state when the set temperature is reached. Installation into a panel cutout. Material: halogen-free thermoplastic plastic. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Room thermostat (EC010927)
ModelOn/Off
Type of power supply230 V AC
Connection3-wire
With receiverno
Measuring range5 - 30 °C
External sensorno
Thermal feedbackSeries
Control characteristicOther
Number of heater outputs1
Suitable for coolingno
Number of cooler outputs1
Differential value0.5-0.5 K
Adjustable differentialno
Temperature readableno
Sensor/feeler typeBimetal
Product codes
SAPCBZ427
STK2613399
PLC2613399
GTIN/EAN4011334379607
Manufacturer part number20266086
Vendor material number2613399
Basic information
Package measurements (L x W x H)81 x 60 x 81 mm
Package volume0.394 l
Package weight0.096 kg
Base uniteach
Package units1 / 1920
Package contents–
UNSPSC39121523
BrandHAGER
VendorUTU OY
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Sustainability categories
Energy efficiency
Features
CE MarkYes
With thermostatYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0093
GWP, uniteach
Source for GWP dataEPD
