SCREED-FLUSH TRUNKING BASE BKB BKBD FE 300X80X2000 ZN BRSHE.
Product code
1476763

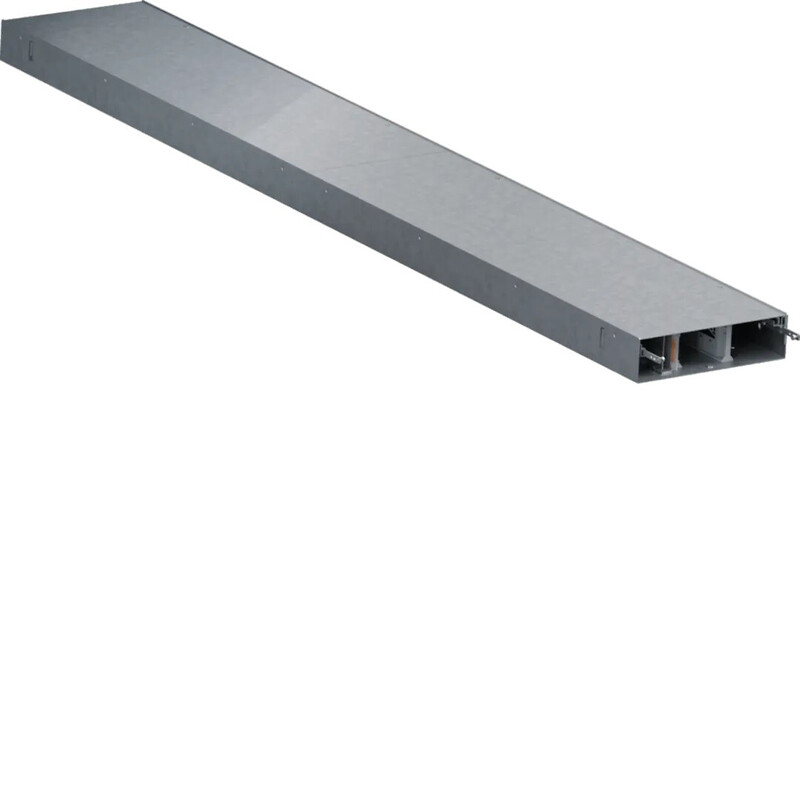

Floor channel with cable penetration and brush edge. BKBD 300x80, length 2m. The base section of the floor channel BKBD 300x80, length 2m, is ideally suited for installation with leveling compound in dry indoor environments. Equipped with a brush strip, side profiles, and equipment supports. Adjustable floor edge profile (0-25 mm) for various floor surface thicknesses. Compatible with standard DIN EN 50085-2-2. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Subfloor installation duct flush floor open (EC001901)

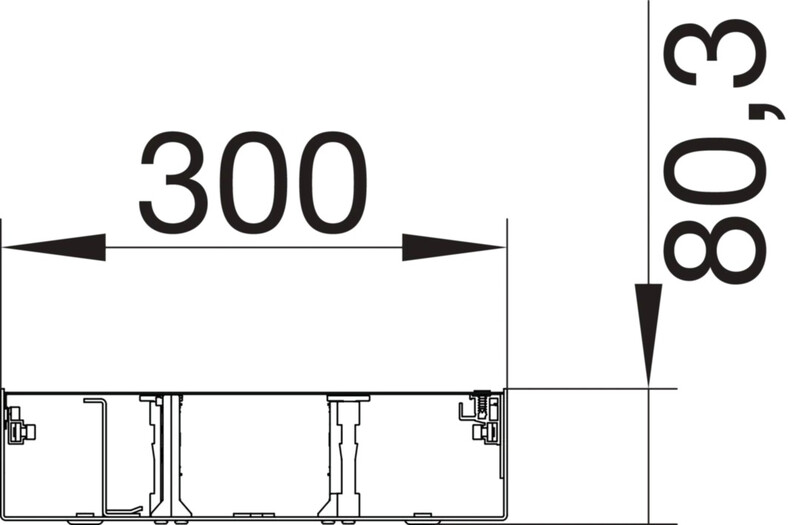

Width300 mm
Length2000 mm
Min. height finishing layer80 mm
Levelling range90 - 245 mm
Mounting openingNone
Number of provided built-in units40
With partition panelyes
Max. number of compartments3
Partition fixingSnap
Floor maintenanceDry
Bottom ductyes
Material side wall/bottom ductSteel
Surface side wall/bottom ductGalvanised
Material coverSteel
Material thickness cover1 mm
Product codes
SAPDMN600
STK1476763
PLC1476763
GTIN/EAN4012740030519
Manufacturer part numberBKBD300801
Vendor material number1476763
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume12 l
Package weight5.656 kg
Base unitMeter
Package units2 / 36
Package contents–
UNSPSC39131712
BrandHAGER
VendorUTU OY
