SCREED-FLUSH TRUNKING LID BKG BKG FE 200X1000MM REC. LE ZN
Product code
1476721

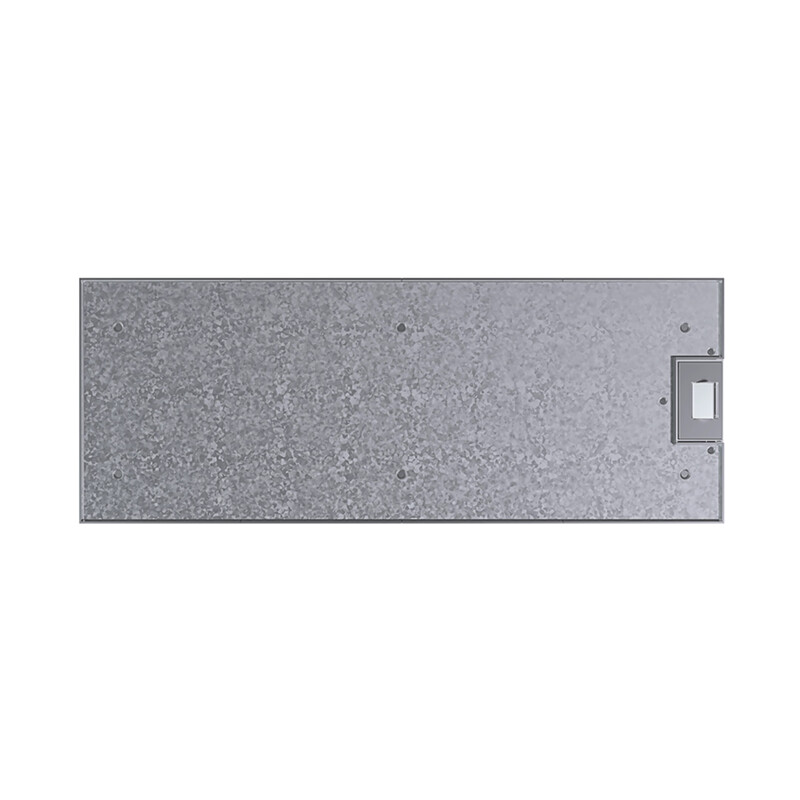

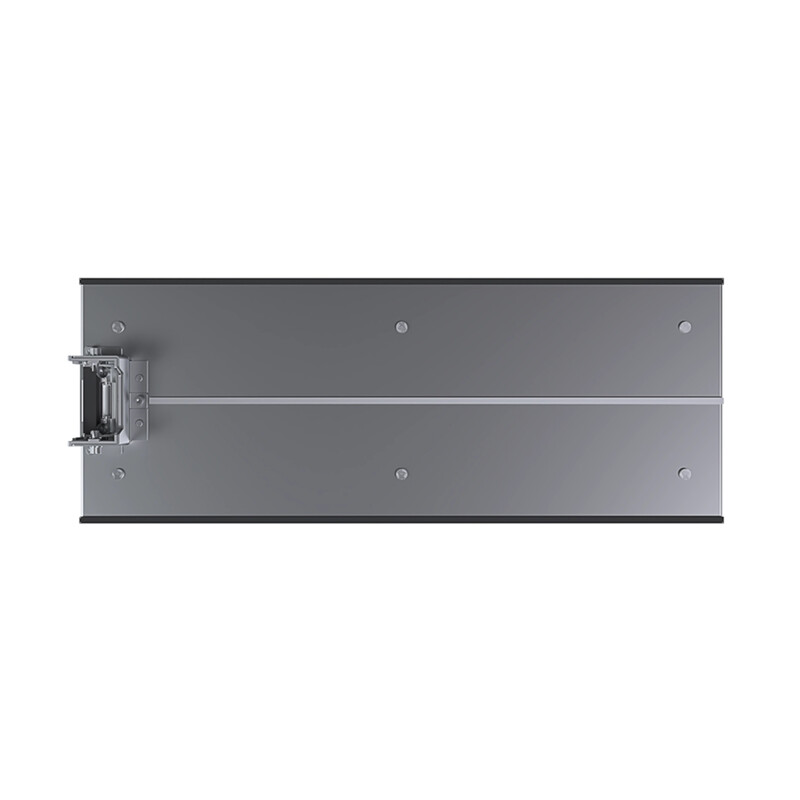

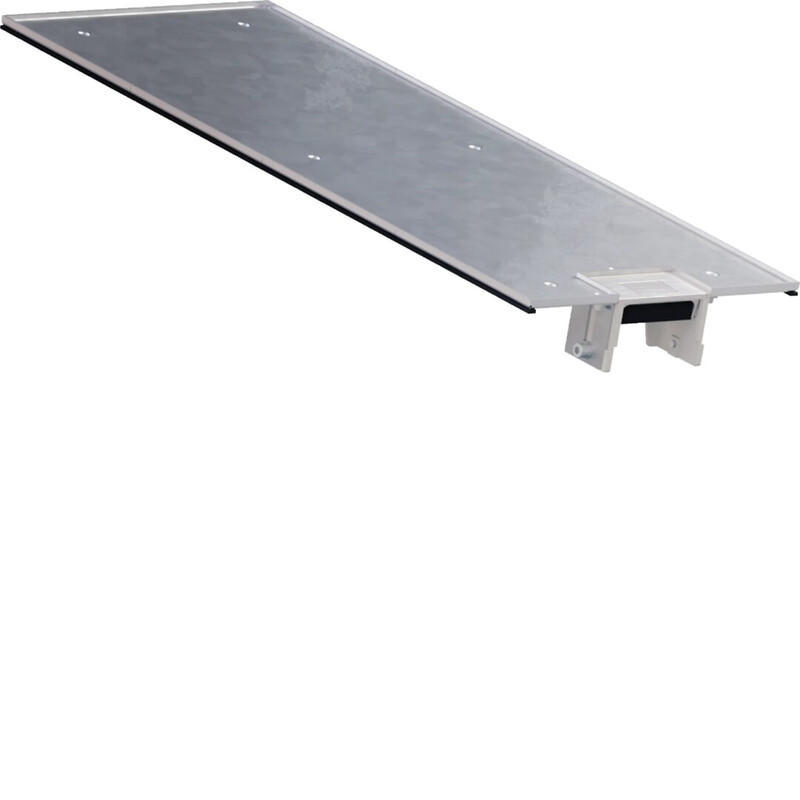

Flush cover with surface recess for floor channel BKGD 200x60, length 0.5 m, galvanized steel
The cover for floor channel BKG200 with surface recess, length 0.5 m, is designed for dry indoor areas with dry-cleanable flooring. It includes a cover plate and an adjustable cable entry allowing for surface thickness up to 3 mm. Electrical connection with grounding springs is optional. Complies with standard DIN EN 50085-2-2. Ideal for floor channels with floor leveling. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cover for subfloor installation duct flush floor open (EC000894)

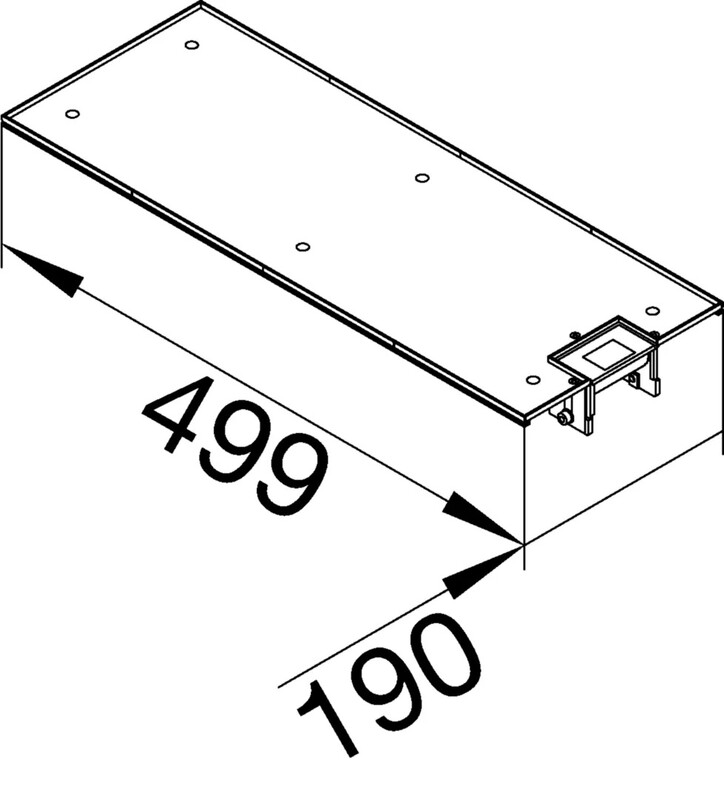

Width200 mm
Length499 mm
Material thickness3 mm
Mounting openingFor cable outlet
Number of mounting openings0
Type of cable outletSeparate cable outlet
Cover modelTrough
Adjustable height for floor covering25 mm
MaterialOther
Surface protectionGalvanised
Product codes
SAPDMN559
STK1476721
PLC1476721
GTIN/EAN4012740030830
Manufacturer part numberBKG2002W3LA
Vendor material number1476721
Basic information
Package measurements (L x W x H)500 x 190 x 51 mm
Package volume4.845 l
Package weight1.624 kg
Base uniteach
Package units1 / 40
Package contents–
UNSPSC39131712
BrandHAGER
VendorUTU OY
