SCREED-FLUSH TRUNKING LID BKG BKG FE 400X1000MM BLIND ZN

Product code
1476711

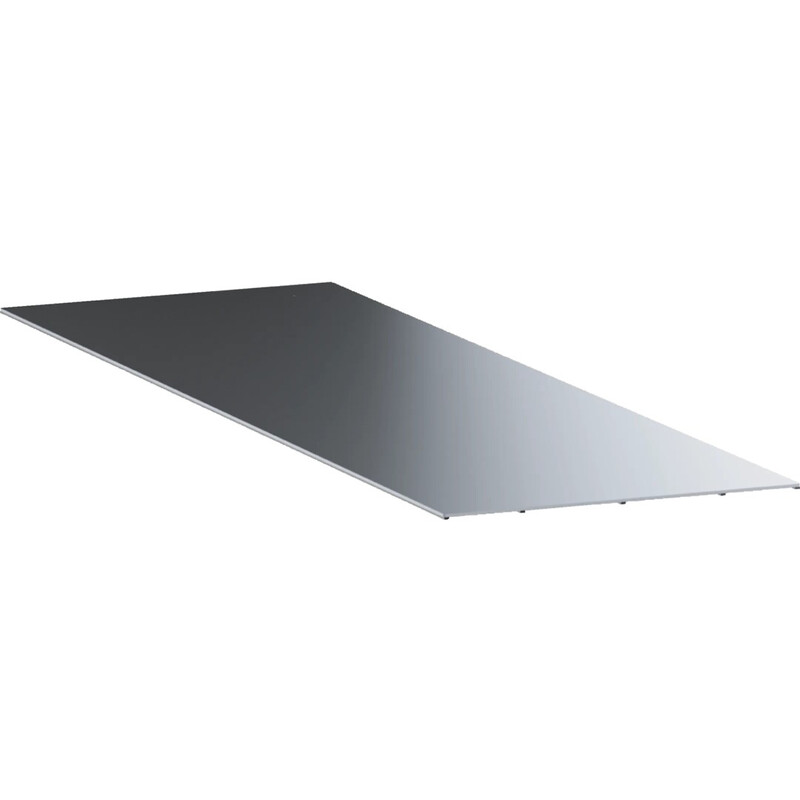

Solid cover for open floor channel BKGD 400x60/80 length 1m, galvanized steel Solid cover for open floor channel for dry indoor areas with dry-cleanable floors. The top consists of a metal plate serving as the channel lid. The possible thickness of the applied floor finish is 0 - 25 mm. Electrical connection from the top to the bottom can alternatively be achieved using grounding springs. Tested in accordance with standard DIN EN 50085-2-2. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Cover for subfloor installation duct flush floor open (EC000894)

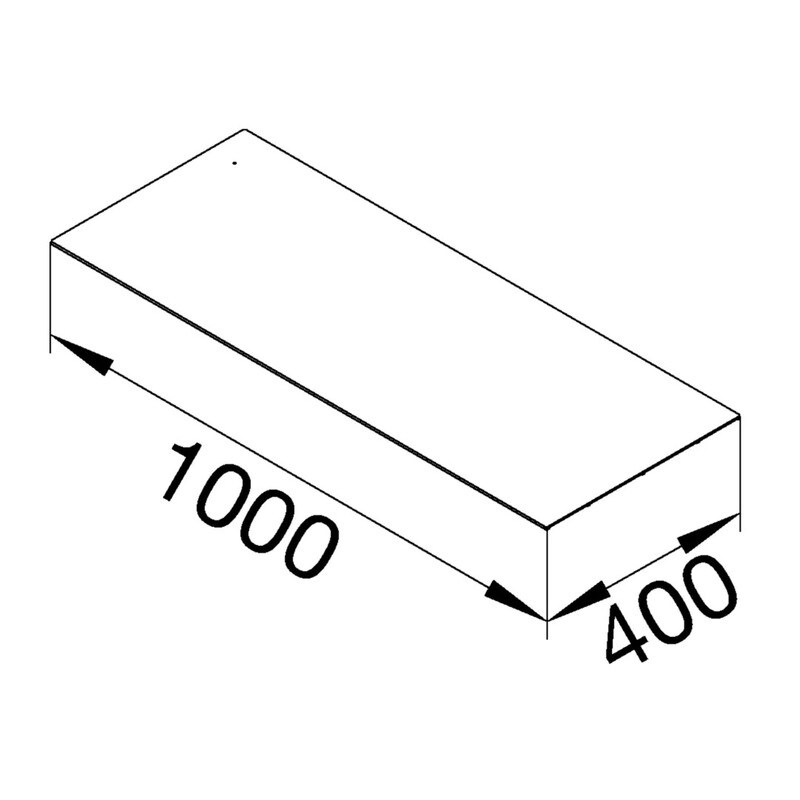

Width400 mm
Length999 mm
Material thickness3 mm
Mounting openingNone
Number of mounting openings0
Type of cable outletNone
Cover modelFlat
MaterialSteel
Surface protectionGalvanised

Product codes

SAPDMN592
STK1476711
PLC1476711
GTIN/EAN4012740980807
Manufacturer part numberBKG4002BL
Vendor material number1476711

Basic information

Package measurements (L x W x H)1000 x 390 x 5 mm
Package volume1.95 l
Package weight9.15 kg
Base unitMeter
Package units1 / 30
Package contents
UNSPSC39131712
BrandHAGER
VendorUTU OY

Documents (6)

Environment and safety

Documents (1)

Sustainability brochures & documents

Manufacturer

NameUTU Oy
Postal addressAhjontie 1, 28400 Ulvila
