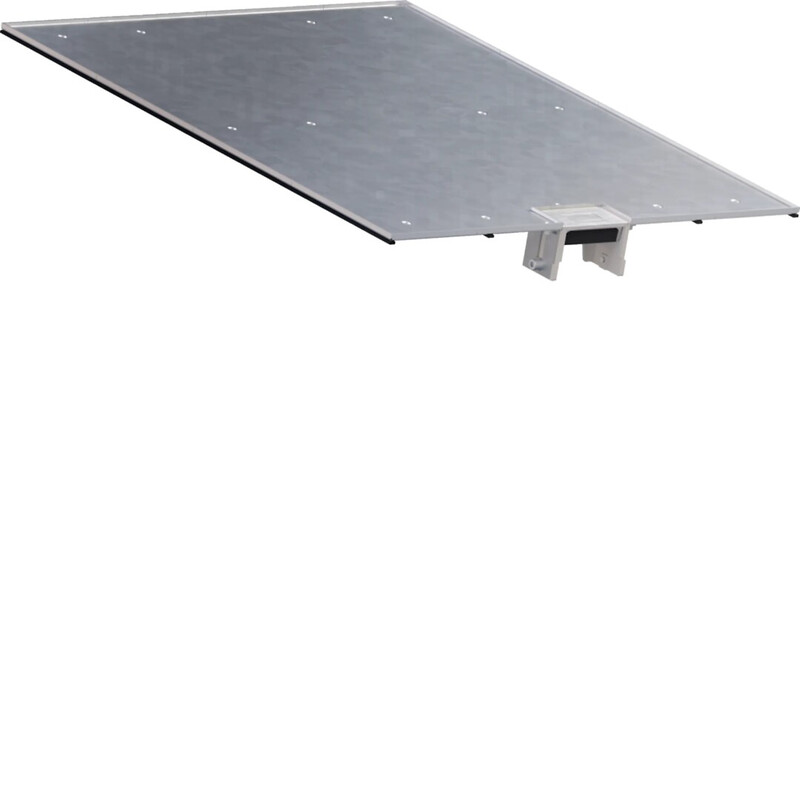

SCREED-FLUSH TRUNKING LID BKG BKG FE 400X1000MM REC. LE ZN
Product code
1476723
Cover with surface recess for floor channel BKG300, length 0.5 m, designed for dry indoor areas with dry-cleanable flooring. It includes a cover plate and an adjustable cable entry allowing for surface thickness up to 3 mm. Electrical connection with grounding springs is optional. Complies with standard DIN EN 50085-2-2. Ideal for floor channels with floor leveling. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cover for subfloor installation duct flush floor open (EC000894)

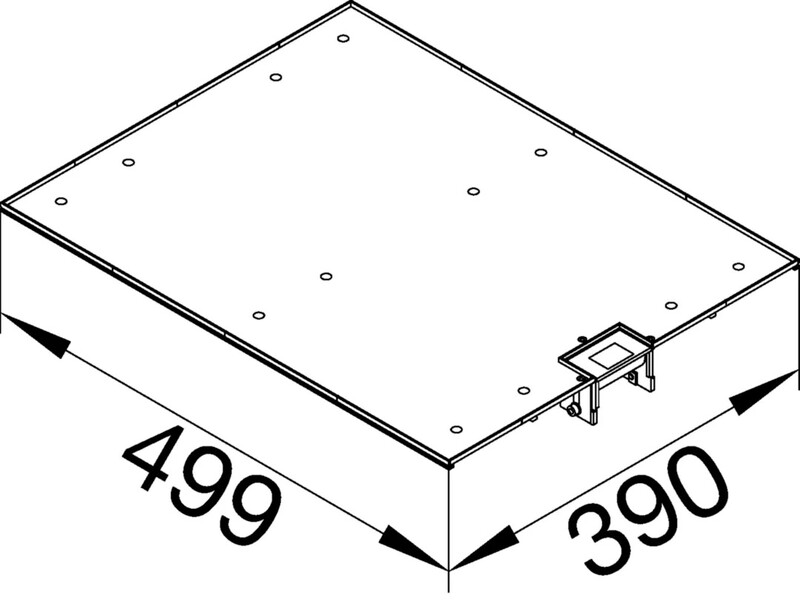

Width400 mm
Length499 mm
Material thickness3 mm
Mounting openingNone
Number of mounting openings0
Type of cable outletSeparate cable outlet
Cover modelTrough
Adjustable height for floor covering25 mm
MaterialOther
Surface protectionGalvanised
Product codes
SAPDMN561
STK1476723
PLC1476723
GTIN/EAN4012740030878
Manufacturer part numberBKG4002W3LA
Vendor material number1476723
Basic information
Package measurements (L x W x H)500 x 390 x 51 mm
Package volume9.945 l
Package weight3.18 kg
Base uniteach
Package units1 / 20
Package contents–
UNSPSC39131712
BrandHAGER
VendorUTU OY
