SCREED-FLUSH TRUNKING LID BKG BKG FE 500X1000MM LE ZN
Product code
1476716

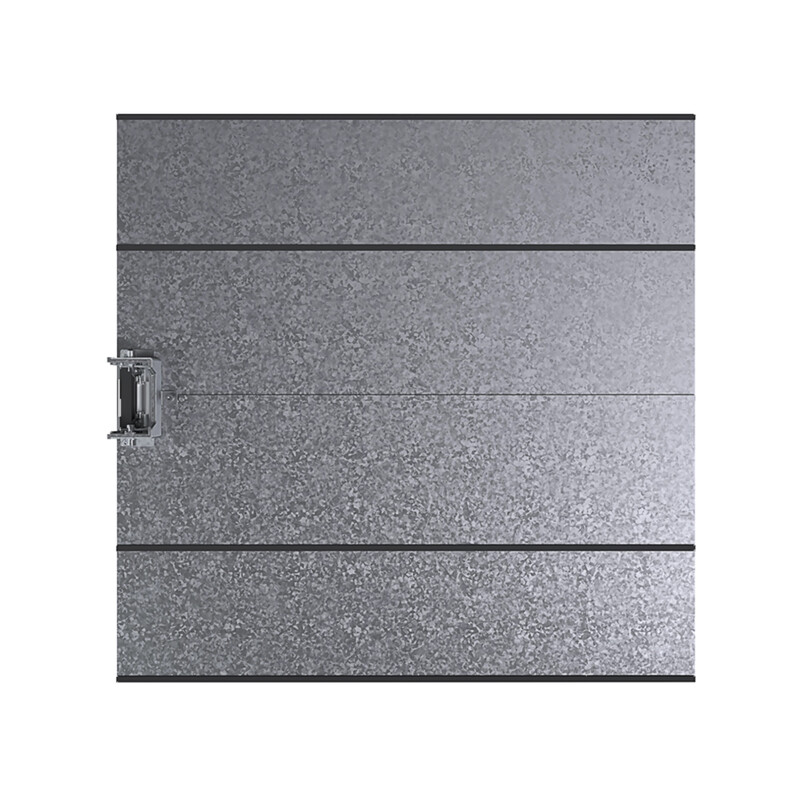

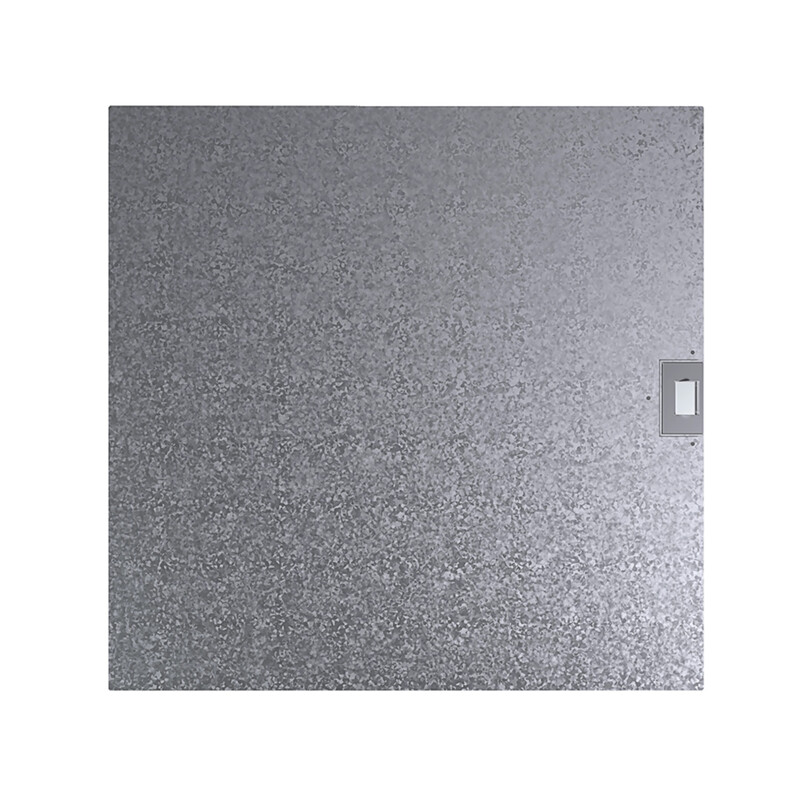

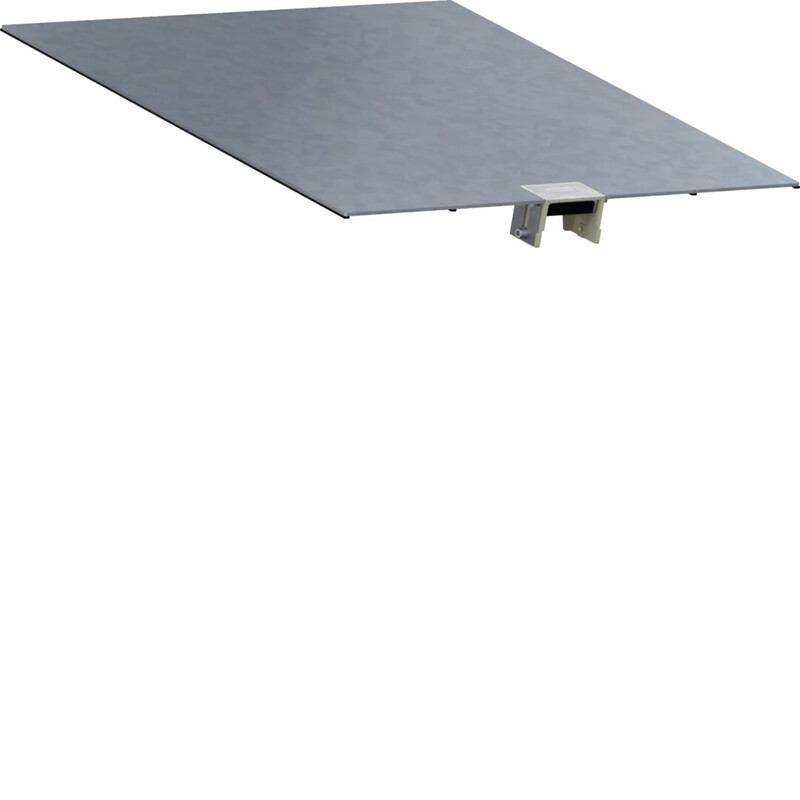

Cover with opening for floor channel BKGD 500x60/80, length 0.5 m, galvanized steel
Cover for floor channels BKG500 with cable penetration, length 0.5 m, suitable for dry indoor areas with dry-cleanable flooring. It includes a cover plate and an adjustable cable penetration (0-25 mm), making it suitable for various floor thicknesses. Optional connection to channel frame with grounding springs. Compliance with standard DIN EN 50085-2-2 ensures high quality. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cover for subfloor installation duct flush floor open (EC000894)

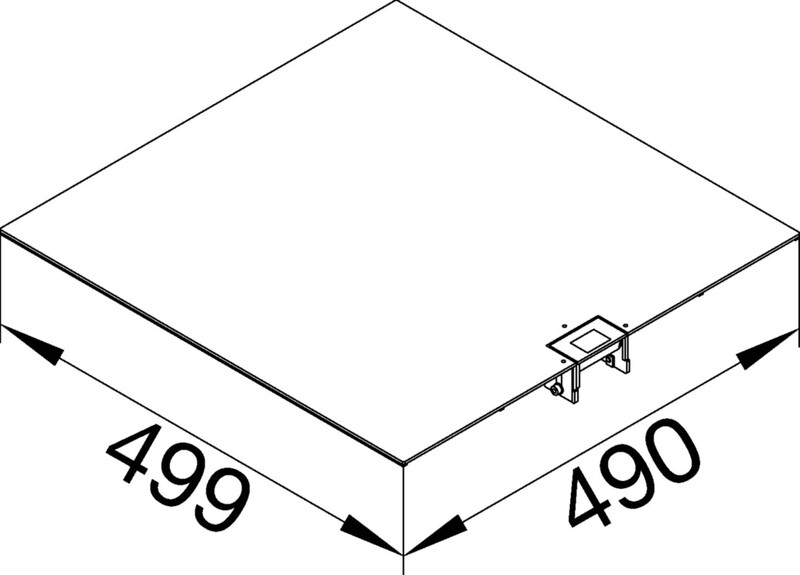

Width500 mm
Length499 mm
Material thickness3 mm
Mounting openingFor cable outlet
Number of mounting openings0
Type of cable outletSeparate cable outlet
Cover modelFlat
Adjustable height for floor covering25 mm
MaterialSteel
Surface protectionGalvanised
Product codes
SAPDMN554
STK1476716
PLC1476716
GTIN/EAN4012740030885
Manufacturer part numberBKG5002LA
Vendor material number1476716
Basic information
Package measurements (L x W x H)500 x 490 x 51 mm
Package volume12.495 l
Package weight5.79 kg
Base uniteach
Package units1 / 20
Package contents–
UNSPSC39131712
BrandHAGER
VendorUTU OY
