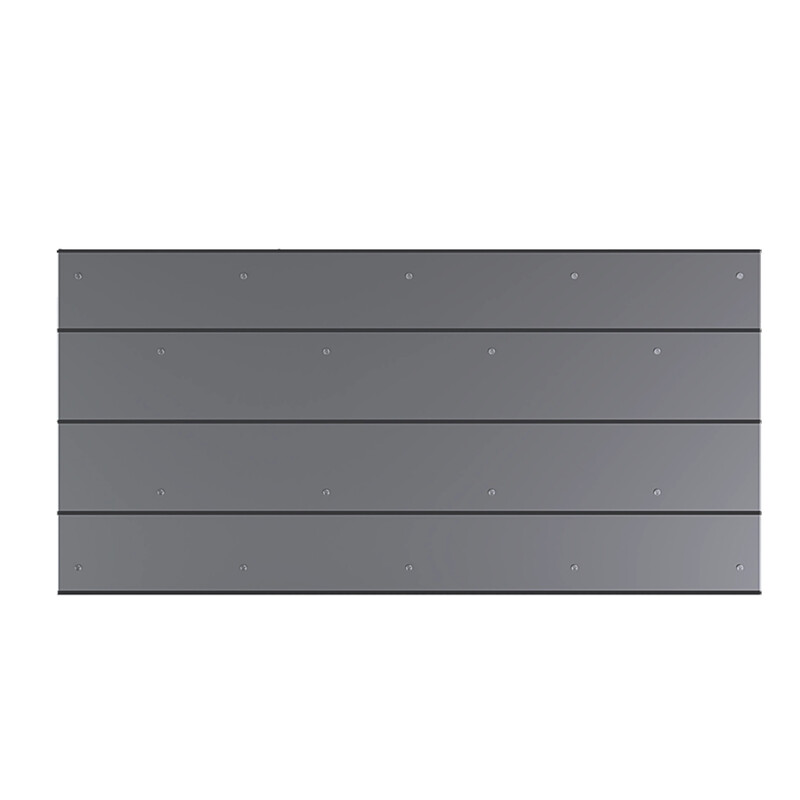

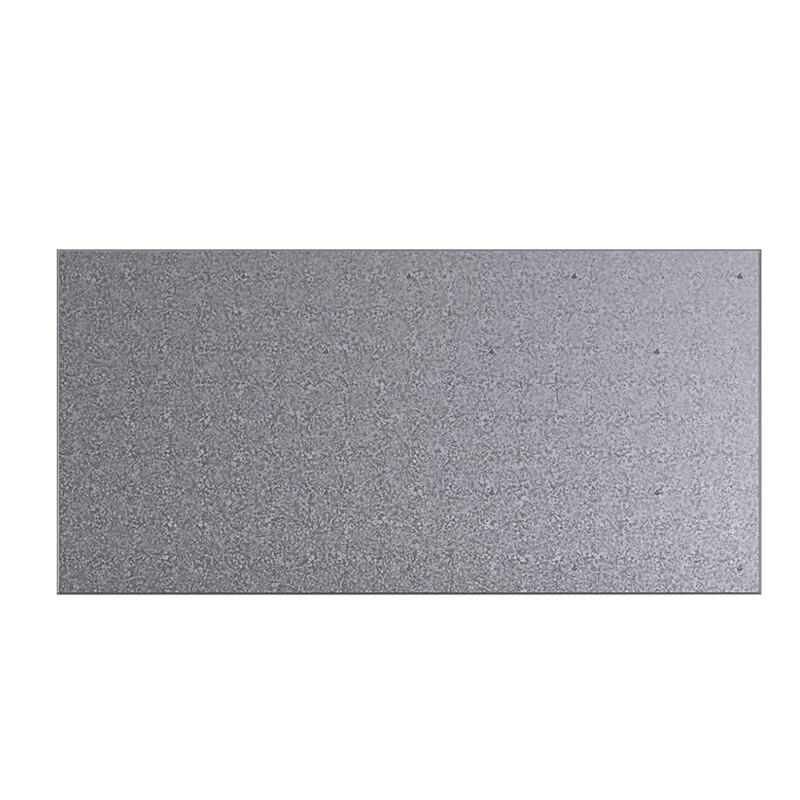

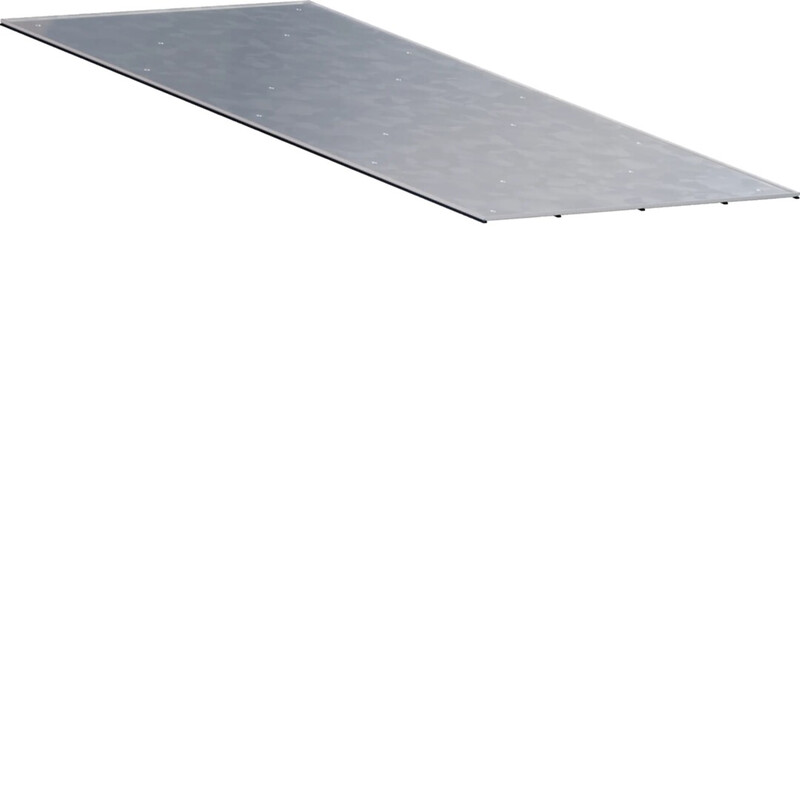

SCREED-FLUSH TRUNKING LID BKG BKG FE 500X1000MM REC. BLIND Z
Product code
1476720
End cap with surface recess for floor channel BKGD 500x60/80, length 1 m, galvanized steel
The cover for floor channel BKG500 with surface recess, length 1 m, is designed for dry indoor areas with dry-cleanable flooring. It allows for a floor finish thickness of up to 3 mm. Electrical connection with grounding springs is optional. Complies with standard DIN EN 50085-2-2. Ideal for floor channels with floor leveling compound. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cover for subfloor installation duct flush floor open (EC000894)

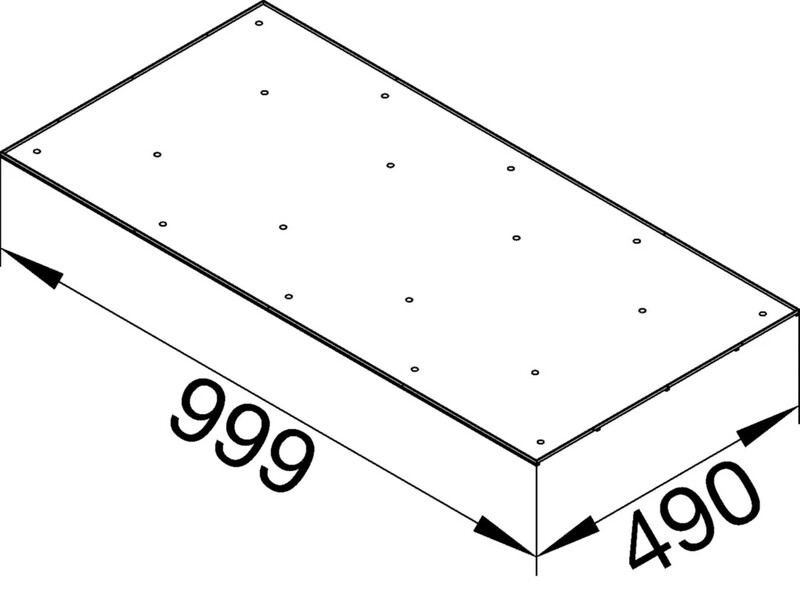

Width500 mm
Length999 mm
Material thickness3 mm
Mounting openingNone
Number of mounting openings0
Type of cable outletNone
Cover modelTrough
MaterialOther
Surface protectionGalvanised
Product codes
SAPDMN558
STK1476720
PLC1476720
GTIN/EAN4012740030632
Manufacturer part numberBKG5002W3
Vendor material number1476720
Basic information
Package measurements (L x W x H)1000 x 490 x 8 mm
Package volume3.92 l
Package weight7.51 kg
Base uniteach
Package units1 / 30
Package contents–
UNSPSC39131712
BrandHAGER
VendorUTU OY
