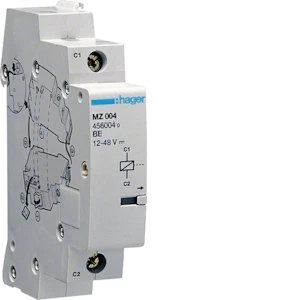

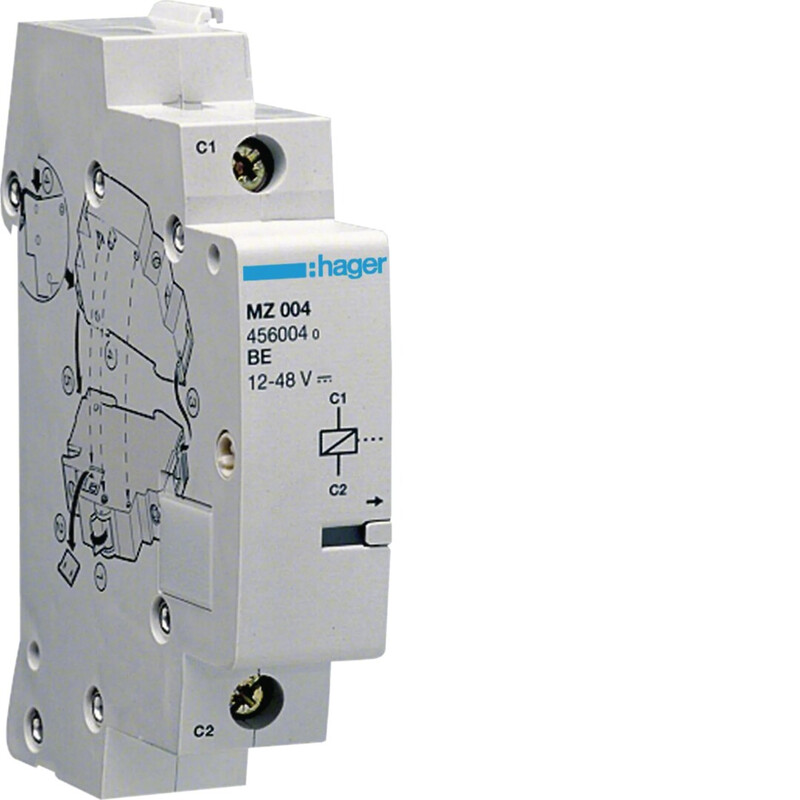

SHUNT STRIP MZ204 24-48VAC/12-48VDC
Product code
3249914
Shunt trip 24-48V AC 12-48V DC
The working current trigger of the circuit breaker's remote trigger operates by energizing the working current trigger's electromagnetic coil (also possible with pulse control). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Shunt release (for power circuit breaker) (EC001023)
Rated control supply voltage AC 50 Hz24-48 V
Rated control supply voltage AC 60 Hz24-48 V
Rated control supply voltage DC12-48 V
Voltage type for actuatingAC/DC
Initial value of the undelayed short-circuit release - setting range0 A
End value adjustment range undelayed short-circuit release0 A
Type of electric connectionScrew connection
Number of contacts as normally open contact0
Number of contacts as normally closed contact0
Number of contacts as change-over contact0
Suitable for power circuit breakerno
Suitable for off-load switchyes
Suitable for motor safety switchno
Suitable for overload relayyes
Product codes
SAPALN687
STK3249914
PLC3249914
GTIN/EAN3250614562044
Manufacturer part numberMZ204
Vendor material number3249914
Basic information
Package measurements (L x W x H)87 x 69 x 24 mm
Package volume0.145 l
Package weight0.126 kg
Base uniteach
Package units1 / 108 / 2592
Package contents–
UNSPSC39121731
BrandHAGER
VendorUTU OY
