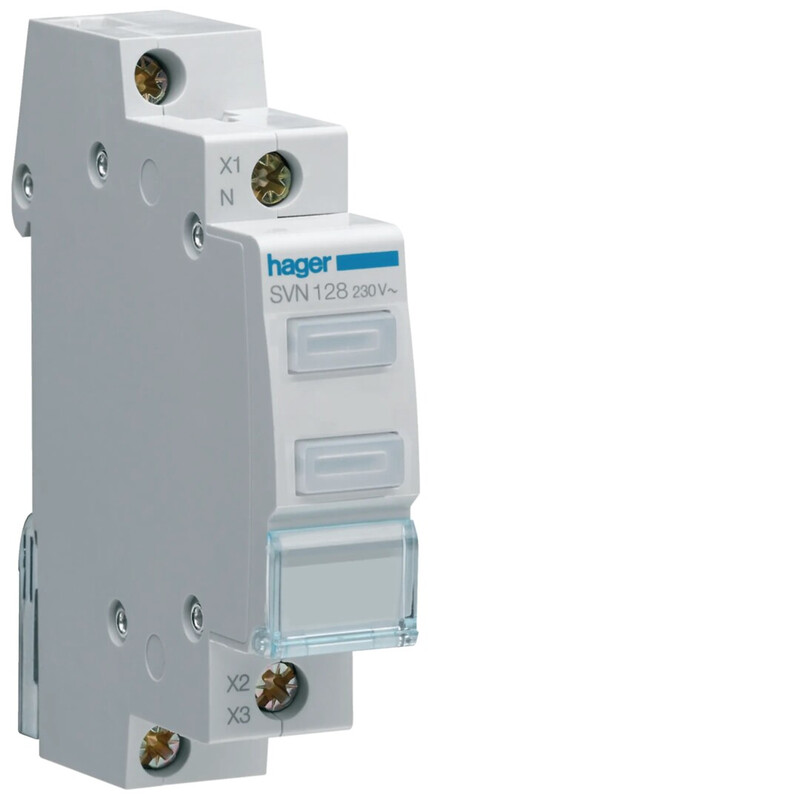

SIGNAL LAMP SVN128 2XKIRK230VAC
Product code
2317361
Clear Double indicator light 230VAC
LED sign light, two-part, with two bright sign lamps, designed for mounting on a DIN rail. The light fixture is equipped with a label window for group and device labeling. Nominal voltage 230VAC. Construction in accordance with IEC 62094-1, IEC 60947-1, touch protection in accordance with DIN VDE 0106 part 100. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Indicator light for distribution board (EC001657)
Lamp typeLED
Rated voltage230 V
Voltage typeAC
Width in number of modular spacings1

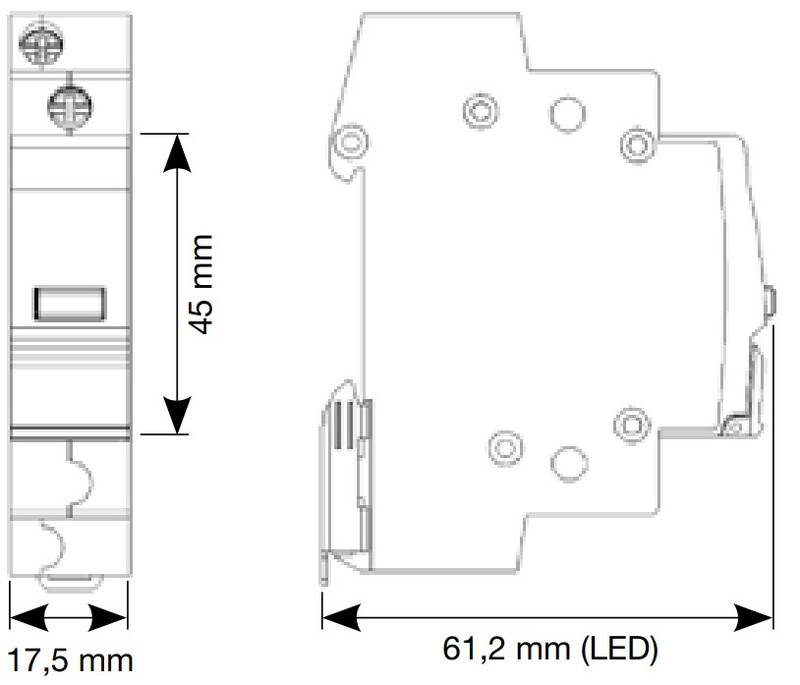

Built-in depth62 mm
Degree of protection (IP)IP20
Product codes
SAPAEU136
STK2317361
PLC2317361
GTIN/EAN3250615725479
Manufacturer part numberSVN128
Vendor material number2317361
Basic information
Package measurements (L x W x H)20 x 80 x 100 mm
Package volume0.16 l
Package weight0.005 kg
Base uniteach
Package units1 / 12 / 144 / 3456
Package contents–
UNSPSC39121552
BrandHAGER
VendorUTU OY
Documents (6)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
