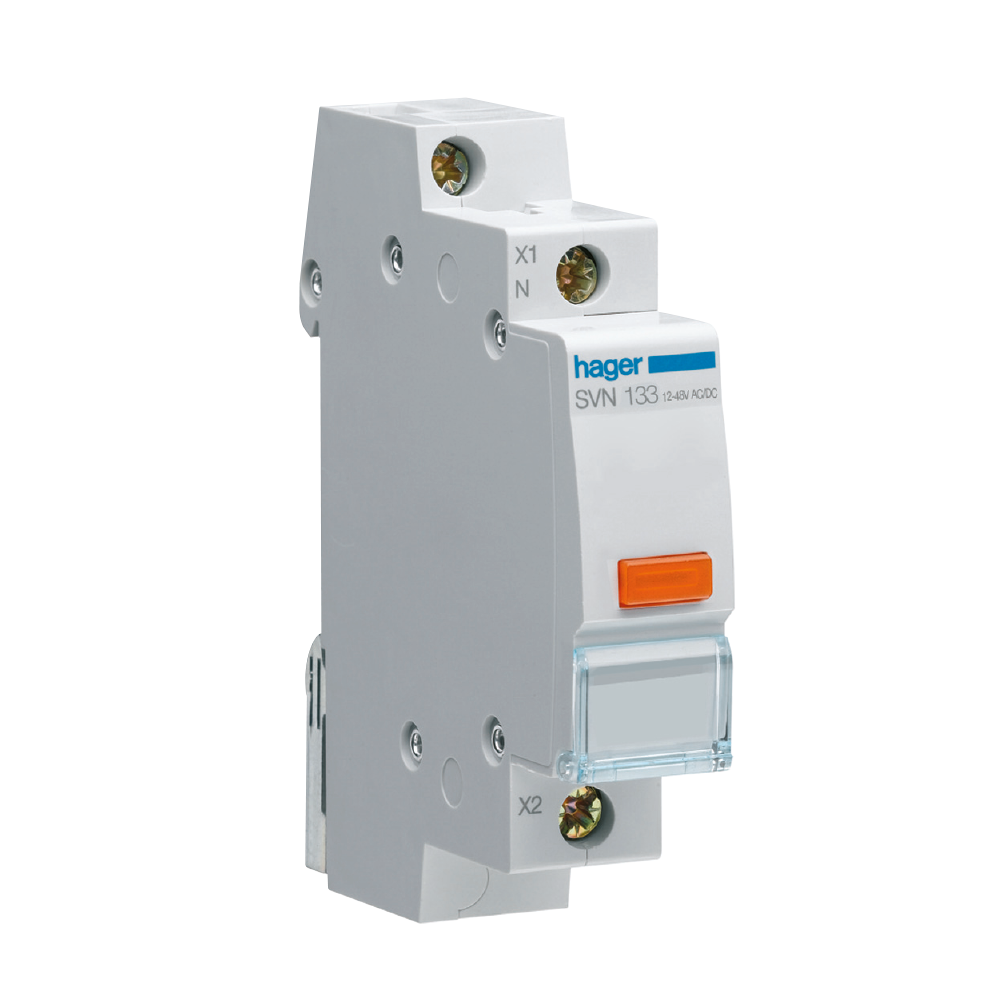

SIGNAL LAMP SVN133 ORANGE 12-48V AC/DC
Product code
2317391
Orange Indicator light 12/48V
LED sign light, 1-part, with orange sign light, designed for mounting on a DIN rail. The light is equipped with a label window for group and device labeling. Nominal voltage 12-48V AC/DC. Construction according to IEC 62094-1, IEC 60947-1, touch protection according to DIN VDE 0106 part 100. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Indicator light for distribution board (EC001657)
Colour calotteOrange
Lamp typeLED
Lamp socketOther
Max. lamp power0.33 W
Rated voltage48 V
Voltage typeAC/DC
Width in number of modular spacings1

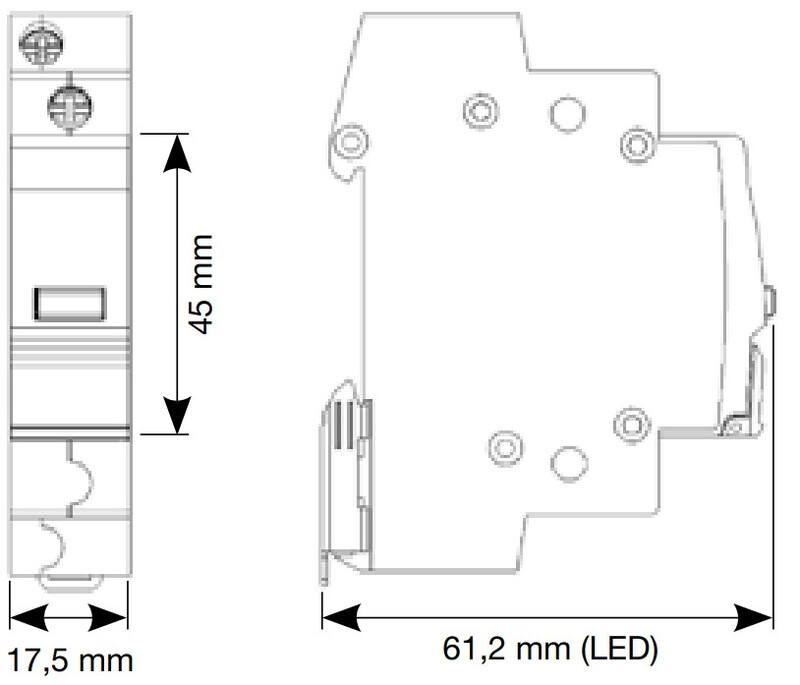

Built-in depth62 mm
Degree of protection (IP)IP20
Product codes
SAPAIV955
STK2317391
PLC2317391
GTIN/EAN3250615725493
Manufacturer part numberSVN133
Vendor material number2317391
Basic information
Package measurements (L x W x H)20 x 80 x 100 mm
Package volume0.15 l
Package weight0.005 kg
Base uniteach
Package units1 / 12 / 144 / 3456
Package contents–
UNSPSC39121552
BrandHAGER
VendorUTU OY
Documents (6)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
