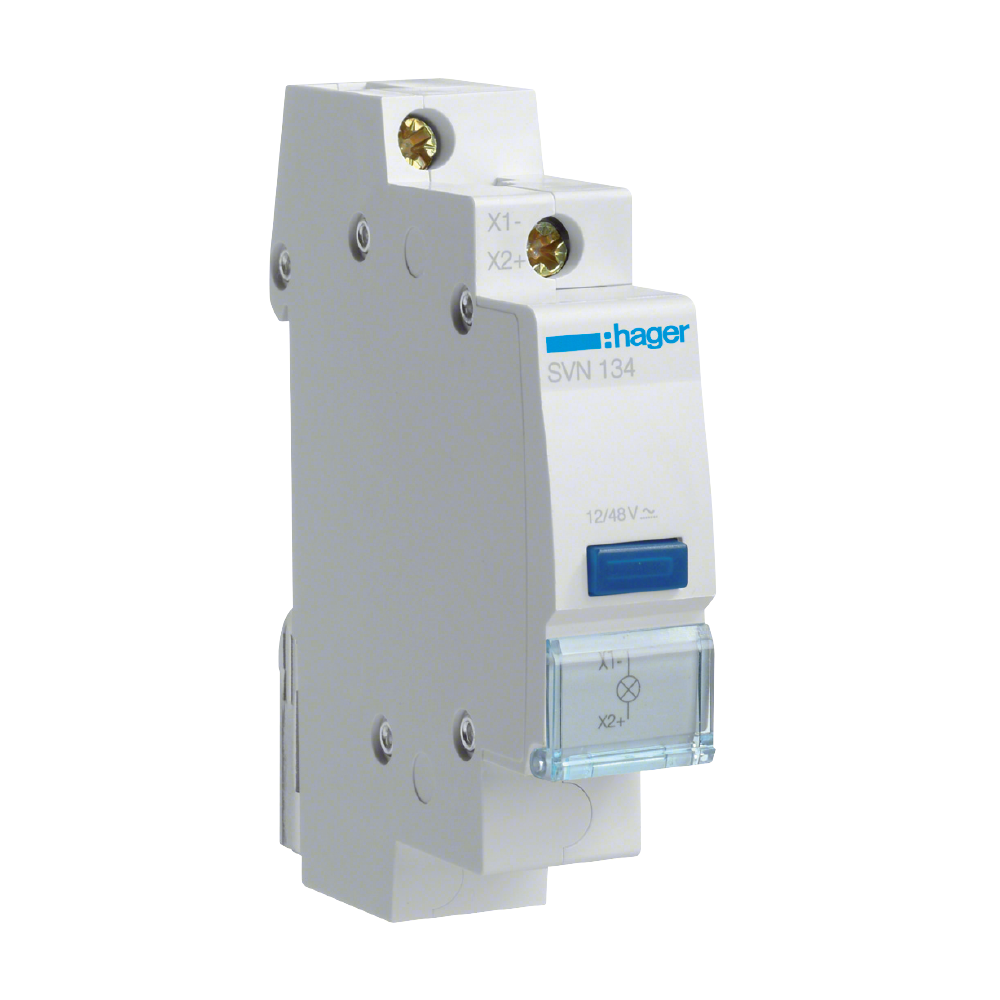

SIGNAL LAMP SVN134 BLUE 12-48V AC/DC
Product code
2317392
Blue Indicator light 12/48V
LED sign light, single-part, with blue sign light, designed for mounting on a DIN rail. The light is equipped with a label window for group and device labeling. Nominal voltage 12-48V AC/DC. Construction in accordance with IEC 62094-1, IEC 60947-1, touch protection in accordance with DIN VDE 0106 part 100. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Indicator light for distribution board (EC001657)
Colour calotteBlue
Lamp typeLED
Lamp socketOther
Max. lamp power0.33 W
Rated voltage48 V
Voltage typeAC/DC
Width in number of modular spacings1

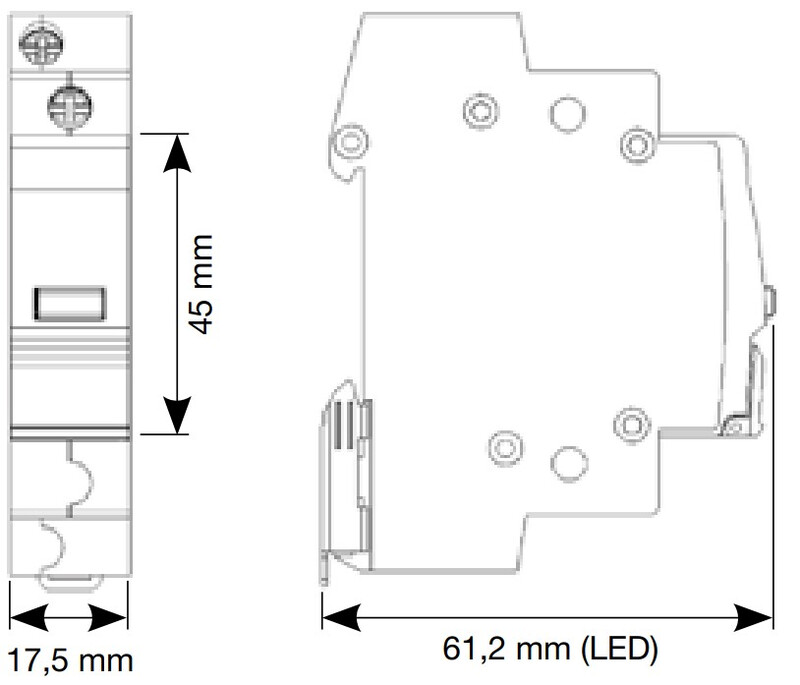

Built-in depth62 mm
Degree of protection (IP)IP20
Product codes
SAPAIM678
STK2317392
PLC2317392
GTIN/EAN3250615725509
Manufacturer part numberSVN134
Vendor material number2317392
Basic information
Package measurements (L x W x H)20 x 80 x 100 mm
Package volume0.15 l
Package weight0.005 kg
Base uniteach
Package units1 / 12 / 144 / 3456
Package contents–
UNSPSC39121552
BrandHAGER
VendorUTU OY
