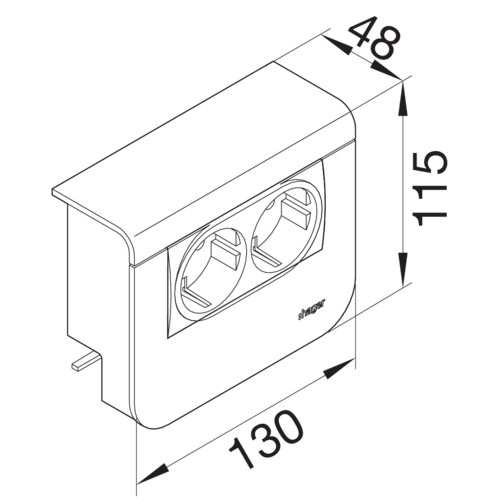

SKIRTING OUTLET TEHALIT.SL SL20055 2F SO WHITE

Surface-mounted box for footrace channel system, constructed according to the conduit standard DIN EN 50085-1. Fully pre-assembled box designed to be mounted onto the footrace channel frame. The box includes a box housing, two pre-wired and touch-safe SCHUKO® sockets, 3-wire spring terminals, and a box cover. The base plate for the surface-mounted box must be ordered separately according to the color of the chosen channel cover.

Features

• channel height: 55 mm
• channel width: 20 mm
• material: plastic
• halogen-free: yes
• color: traffic white
• RAL color code: 9016
• fitting: 2 sockets
• rated current: 16 A
• rated voltage: 230 V
• width: 130 mm
• depth of installed product: 48 mm

This product description is an automated translation of the original Finnish description.
