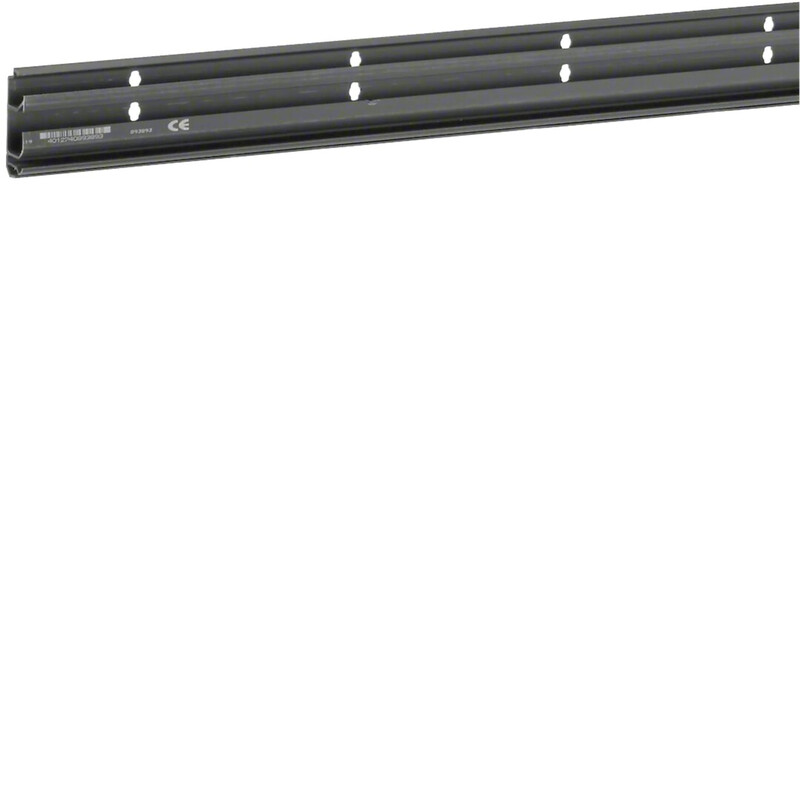

SKRITING TRUNKING BASE SL200551 PVC SL20X55X2000 BLAC

SL 20x55 cable tray base with two cable compartments for cable management systems according to DIN EN 50085-1. The base is mounted directly onto the wall surface using 125 mm standard-spaced mounting holes shaped like keyholes in the base. The base is divided into four separate compartments to separate cable systems and enable quick attachment of tray fittings. The first cable compartment for insulated cables is positioned at a minimum distance of 10 mm from the floor surface.

Features

• channel height: 55 mm
• channel width: 20 mm
• material: PVC
• halogen-free: no
• color: black
• length: 2000 mm
• number of fixed internal partitions: 1
• number of cable compartments: 2
• cable capacity 11mm D e.g. MMJ
• 3 x 1.5mm²: 5
• with protective cover: no
• certifications: CE

This product description is an automated translation of the original Finnish description.
