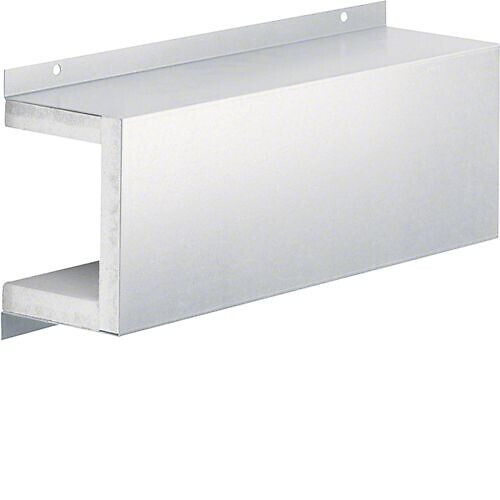

SLIDE MUFFLE TEHALIT L6818 FWK3E 50X60 T.WHITE
Product code
1476169
Extension fire protection duct for FWK3E5006009016. The duct can cover a cable bundle up to a maximum of 350 mm from the end of the last fire protection duct to the next partitioning surface. Sealing to the mounting surface and duct end using included sealing tapes. Surface material steel over fire-protective gypsum board insulation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Coupler for fire-resistant duct (EC002664)
Outer height88 mm
Outer width100 mm
Inner height50 mm
Inner width59 mm
Usable cross section2950 mm²
Insulating materialOther
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Product codes
SAPCPS437
STK1476169
PLC1476169
GTIN/EAN4012740019620
Manufacturer part numberL68189016
Vendor material number1476169
Basic information
Package measurements (L x W x H)400 x 170 x 180 mm
Package volume12.24 l
Package weight4.39 kg
Base uniteach
Package units1 / 46
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
