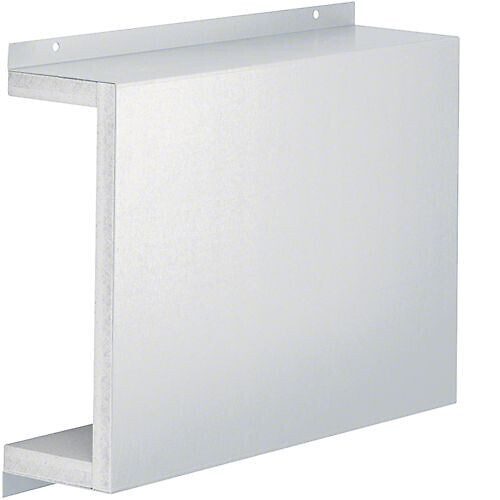

SLIDE MUFFLE TEHALIT L6858 FWK E30 50X210 T.WHITE
Product code
1476181
Extension sleeve for fire protection duct FWK3E5021009016. The sleeve can cover a cable bundle up to a maximum of 350 mm from the end of the last fire protection duct to the next partitioning surface. Sealing to the mounting surface and duct end using the included sealing tapes. Surface material: steel over fire-protective gypsum board insulation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Coupler for fire-resistant duct (EC002664)
Outer height88 mm
Outer width250 mm
Inner height50 mm
Inner width209 mm
Usable cross section10450 mm²
Insulating materialOther
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Product codes
SAPCPS448
STK1476181
PLC1476181
GTIN/EAN4012740019637
Manufacturer part numberL68589016
Vendor material number1476181
Basic information
Package measurements (L x W x H)100 x 100 x 100 mm
Package volume1 l
Package weight6.14 kg
Base uniteach
Package units1 / 36
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
