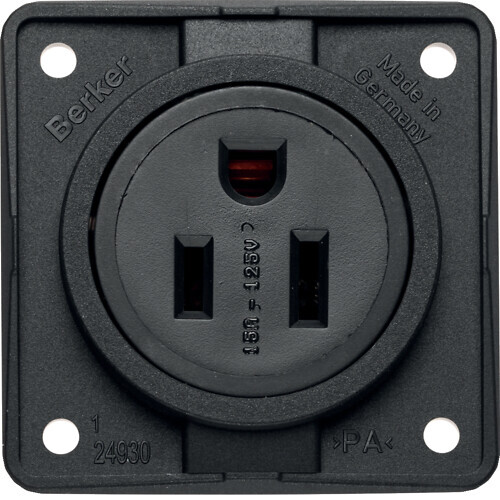

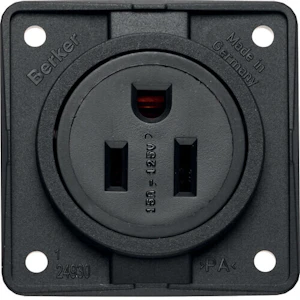

SOCKET OUTLET INTEGRO FLOW 15A/125V NEMA5-15R US/CAN BLAC
Product code
2507728
Outlet with grounding contact USA/CANADA NEMA 5-15 R - screw terminals Rated voltage 125 VAC Rated current 15 A Terminal connections suitable only for connection to fixed conductors. Standard NEMA 5-15 R - 2-pole + grounding This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Socket outlet (EC000125)
ModelUS/CA (NEMA 5-15) (type B)
Imprint/indicationNone
Connection typeScrewed terminal
With enhanced contact protectionno
ColourBlack
Mounting methodBuilt-in
MaterialPlastic
Material qualityThermoplastic
Halogen freeyes
Nominal current15 A
Nominal voltage125 V
Suitable for degree of protection (IP)IP20
Device width55.5 mm
Device height55.5 mm
Device depth27.8 mm
Product codes
SAPCZX694
STK2507728
PLC2507728
GTIN/EAN6410025077286
Manufacturer part number962632513
Vendor material number2507728
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.144 l
Package weight0.045 kg
Base uniteach
Package units10
Package contents–
UNSPSC39121308
BrandHAGER
VendorUTU OY
