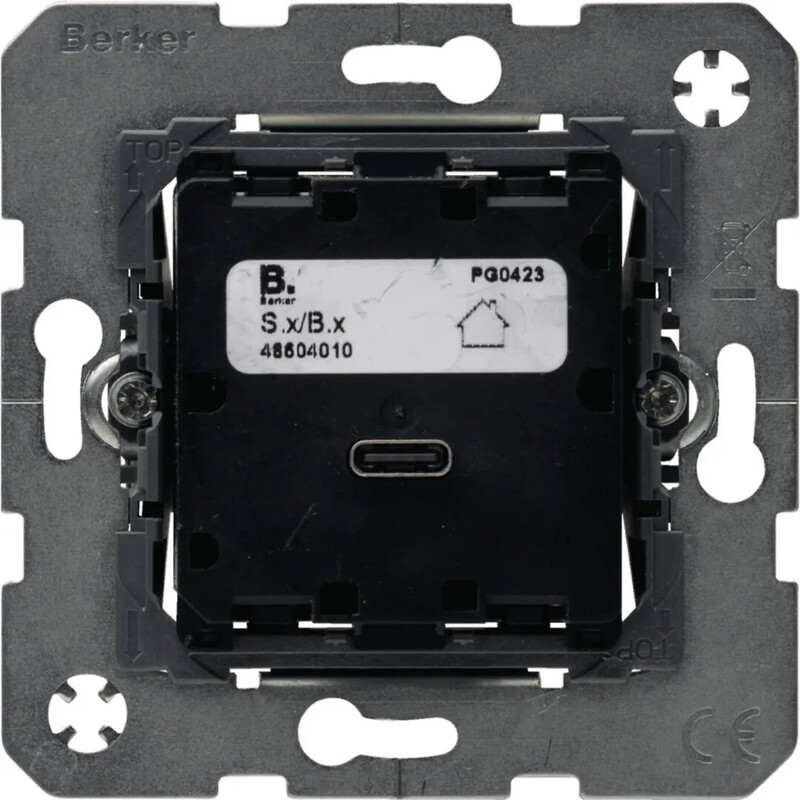

SOCKET-OUTLET S.1 1USB/3,25A/230V 65W SC S.1/BX
Product code
2507249

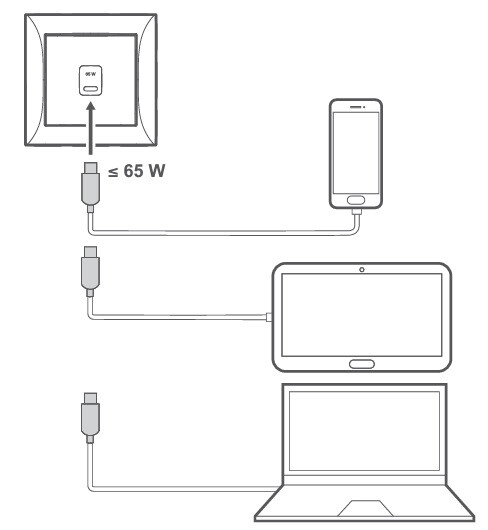

High-power charging box with USB Type-C connector for charging mobile devices such as smartphones, tablet computers, and laptops with a USB cable. The box is suitable for use in dry indoor environments where no dripping or splashing water is present. The device is protected against short circuits and overloads (electronic fuse). Connection via screw terminals. Compatibility with separately ordered center plates for mounting kits S.1, B.3, and B.7. NOTE: Data transfer is not possible, only for charging purposes. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)USB power supply (EC002949)
ModelBus
Number of ports USB-A0
Number of ports USB-C1
Operating voltage198-275 V
Frequency50-50 Hz
Max. output current3250 mA
Output voltage5-20 V
Power consumption0.09 W
Connection typeScrewed terminal
Mounting methodFlush-mounted
ColourBlack
Device width70.85 mm
Device height70.85 mm
Device depth41.9 mm
Min. depth of built-in installation box32 mm
Product codes
SAPDDA633
STK2507249
PLC2507249
GTIN/EAN4011334535324
Manufacturer part number48604010
Vendor material number2507249
Basic information
Package measurements (L x W x H)80 x 80 x 50 mm
Package volume0.32 l
Package weight0.089 kg
Base uniteach
Package units1 / 10 / 333
Package contents–
UNSPSC39121308
BrandHAGER
VendorUTU OY
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Features
Certificate for recycled content of plastic used in the productNo
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0127
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
