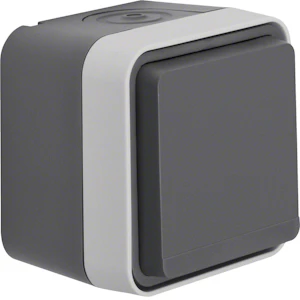

SOCKET OUTLET W.1 1S/16A/IP55 PPJ GRAY
Product code
2408728
SCHUKO socket with a hinged cover, surface-mountable model featuring contact protection and IP55 rating. The socket includes push-in terminals and cable entries for two cables and one conduit or cable. The enclosure base has a full-cover gasket ensuring the rear of the enclosure is sealed. The hinged cover snaps shut by hand, guaranteeing IP55 protection. The material is impact-resistant thermoplastic. The product is manufactured using Ocean-bound plastic recycled material. Ocean-bound plastic refers to improperly disposed plastic waste collected from coastal areas within a maximum distance of 50 kilometers from the shore, preventing plastic from entering the sea. The product contains 27.1% Ocean-bound plastic. Using recycled plastic protects the environment from harmful plastic waste and reduces the product's carbon footprint. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Socket outlet (EC000125)
ModelSocket outlet with protective contact CEE 7/3 (type F)
Concurrently switching neutral conductorno
Protective contactEarthing clips
Number of active contacts (round)2
Number of active contacts (flat)0
Number of active contacts (square)0
With signal lampno
Number of ports USB-A0
Number of ports USB-C0
Max. current rating of USB power supply0 A
Number of modules (module system)0
Number of socket outlets switchable0
Number of phases1
Imprint/indicationNone
Connection typePush-in clamp
Product codes
SAPDQC498
STK2408728
PLC2408728
GTIN/EAN3250617171601
Manufacturer part numberWNC160
Vendor material number2408728
Basic information

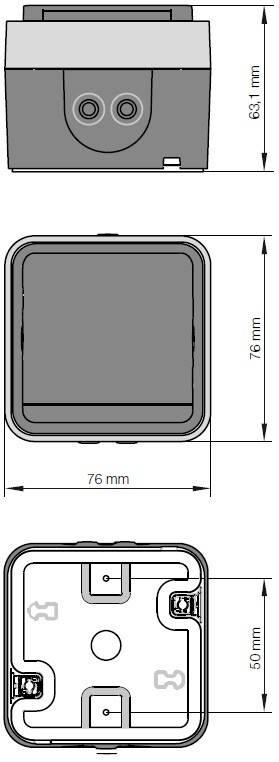

Package measurements (L x W x H)76 x 76 x 65 mm
Package volume0.375 l
Package weight0.123 kg
Base uniteach
Package units1 / 10 / 30 / 960
Package contents–
UNSPSC39121308
BrandHAGER
VendorUTU OY
