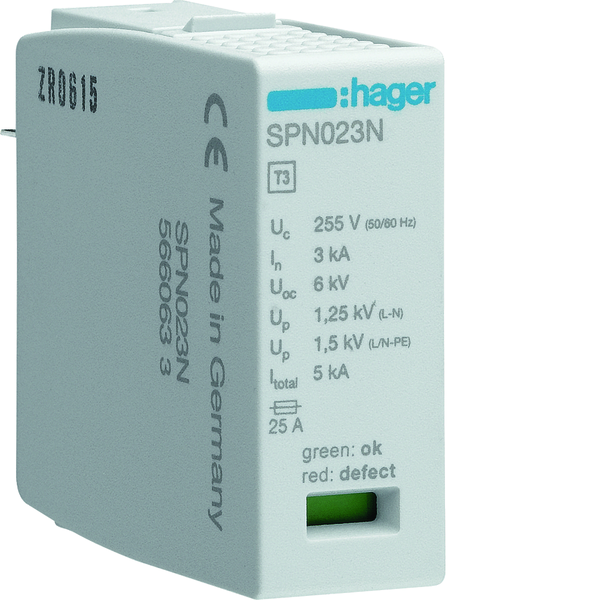

SPD SPARE CARTRIDGE SPN023N FOR SPN203N
Product code
3246194
No product description available.
Product details
Technical specifications
Product class (ETIM)Surge protection device for power supply systems (EC000941)
System configuration DCno
System configuration ITyes
System configuration TNyes
System configuration TN-Cno
System configuration TN-C-Syes
System configuration TN-Syes
System configuration TTyes
System configuration otherno
Number of conductors (without earthing)1
Nominal discharge surge current (8/20)3 kA
Max. discharge surge current (8/20)5 kA
Nominal voltage AC230 V
Nominal voltage DC0 V
Max. continuous voltage AC255 V
Max. continuous voltage DC0 V
Product codes
SAPCEG329
STK3246194
PLC3246194
GTIN/EAN3250615660633
Manufacturer part numberSPN023N
Vendor material number3246194
Basic information
Package measurements (L x W x H)64 x 64 x 87 mm
Package volume0.356 l
Package weight0.087 kg
Base uniteach
Package units1 / 108 / 2592
Package contents–
UNSPSC39121610
BrandHAGER
VendorUTU OY
