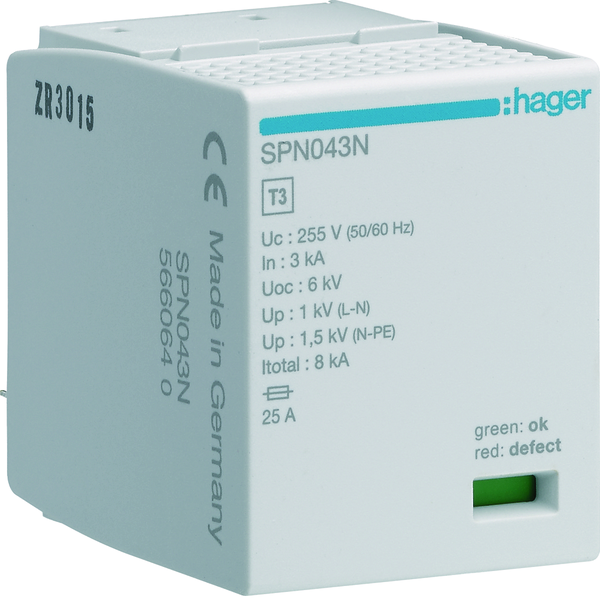

SPD SPARE CARTRIDGE SPN043N FOR SPN403N
Product code
3246195
No product description available.
Product details
Technical specifications
Product class (ETIM)Surge protection device for power supply systems (EC000941)
System configuration DCno
System configuration ITyes
System configuration TNyes
System configuration TN-Cno
System configuration TN-C-Syes
System configuration TN-Syes
System configuration TTyes
System configuration otherno
Number of conductors (without earthing)4
Nominal discharge surge current (8/20)3 kA
Max. discharge surge current (8/20)5 kA
Nominal voltage AC400 V
Nominal voltage DC0 V
Max. continuous voltage AC255 V
Max. continuous voltage DC0 V
Product codes
SAPCEG330
STK3246195
PLC3246195
GTIN/EAN3250615660640
Manufacturer part numberSPN043N
Vendor material number3246195
Basic information
Package measurements (L x W x H)64 x 64 x 87 mm
Package volume0.356 l
Package weight0.77 kg
Base uniteach
Package units1 / 76 / 1824
Package contents–
UNSPSC39121610
BrandHAGER
VendorUTU OY
