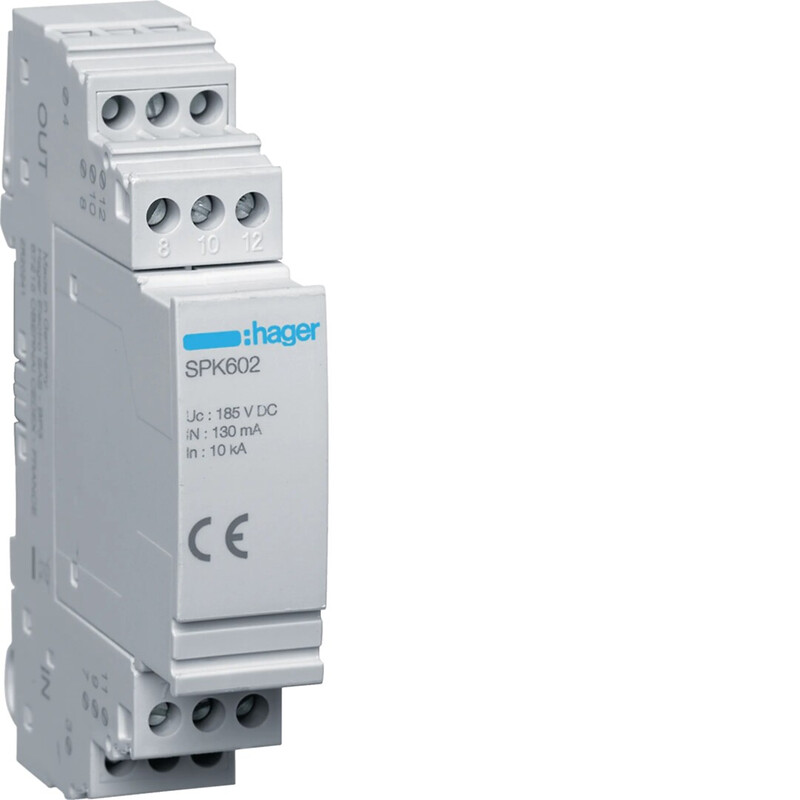

SURGE ARRESTOR SPK602 DSL, ADSL, ADSL2+, ISDN
Product code
3246575
No product description available.
Product details
Technical specifications
Product class (ETIM)Surge protection device for data networks/MCR-technology (EC000943)
Nominal voltage AC130-130 V
Nominal voltage DC185-185 V
Max. continuous voltage AC130 V
Max. continuous voltage DC185 V
Nominal discharge surge current (8/20)10 kA
Voltage protection level core/earth300 V
Limiting frequency20 MHz
Mounting methodDIN rail (top hat rail) 35 mm
Connection 1Clamp
Pro-active thermo-controlno
With remote signalling contactyes
Signalling at the deviceNone
Explosion-tested versionno
Number of conductors (without earthing)3
Earthing viaSeparate conductor
Product codes
SAPCVG772
STK3246575
PLC3246575
GTIN/EAN3250615515070
Manufacturer part numberSPK602
Vendor material number3246575
Basic information
Package measurements (L x W x H)65.5 x 17.7 x 90 mm
Package volume0.104 l
Package weight0.074 kg
Base uniteach
Package units1 / 42 / 1008
Package contents–
UNSPSC39121634
BrandHAGER
VendorUTU OY
