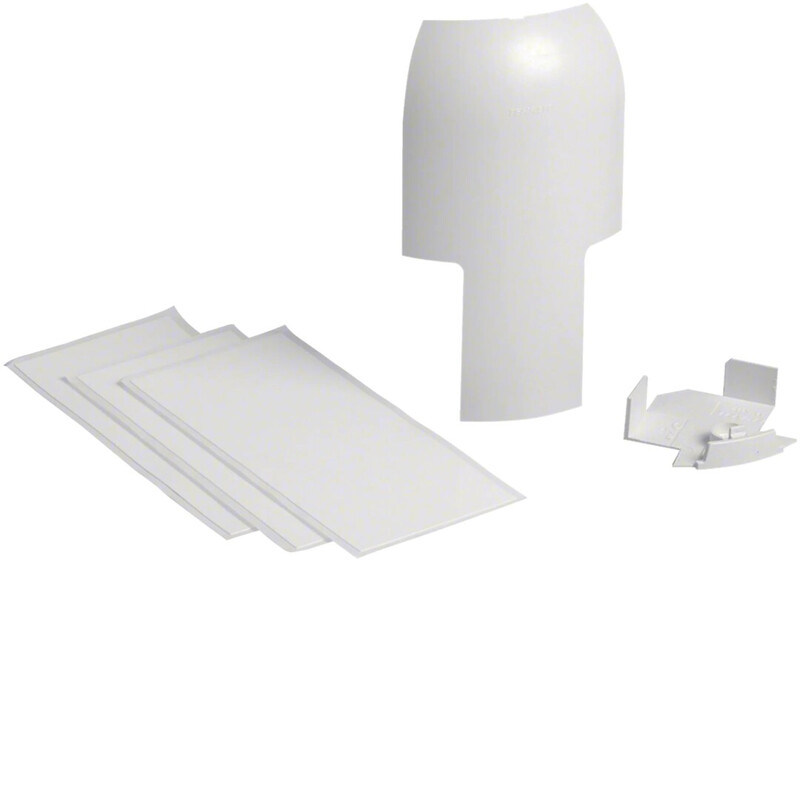

T-PIECE TEHALIT.SL SL2005581 SL20X55 WHITE
Product code
1475968
Corner fitting for foot rail channel SL 20x55 made of halogen-free plastic according to DIN EN 50085-1 for conduit systems. The corner fitting is used to connect the EK40x40 corner channel to the foot rail channel. The molded part attaches to the edge of the channel cover, concealing cut edges, finishing the installation outcome, and speeding up installation.
Channel height: 55 mm
Channel width: 20 mm
Material: ABS
Halogen-free: yes
Color: traffic white
RAL color code: RAL9016
With protective cap: no This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Transition piece for skirting duct (EC001940)
Height baseboard duct55 mm
Depth plinth skirting duct20 mm
Height duct connection55 mm
Width duct connection20 mm
Duct connectionCorner duct
MaterialPlastic
Halogen freeyes
Colour top coverWhite
RAL-number9016
DecorationNone
With carpet borderno
Degree of protection (IP)IP40
Impact strengthIK07
Product codes
SAPCLX053
STK1475968
PLC1475968
GTIN/EAN4012740017602
Manufacturer part numberSL20055819016
Vendor material number1475968
Basic information
Package measurements (L x W x H)132 x 50 x 50 mm
Package volume0.33 l
Package weight0.041 kg
Base uniteach
Package units1 / 5 / 360
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
