T-PIECE TEHALIT.SL SL201158 SL20X115 WHITE
Product code
1476079

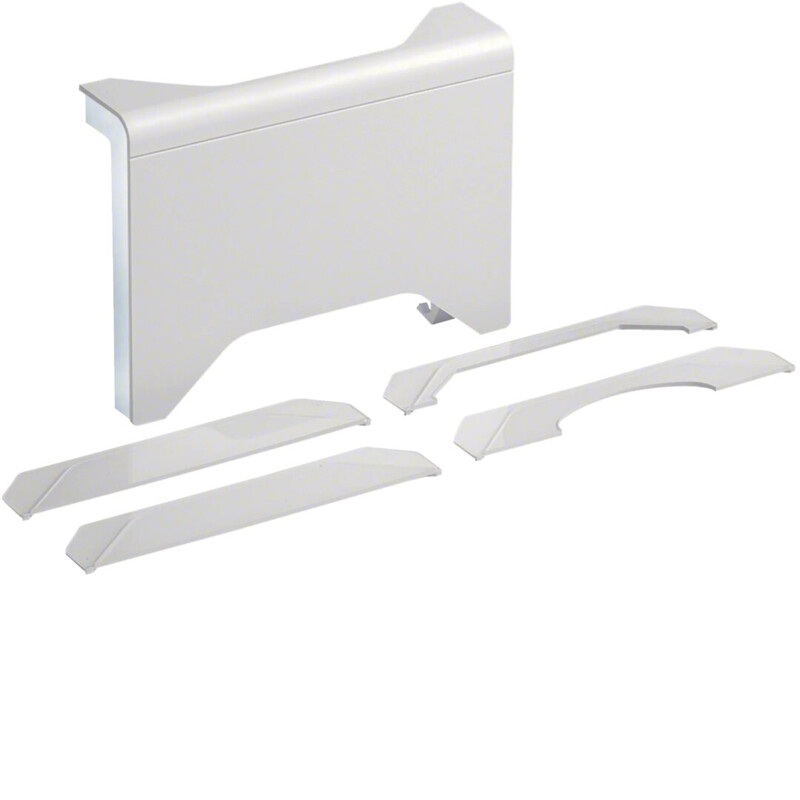

3D corner fitting for foot rail channel SL 20x115 made of halogen-free plastic according to DIN EN 50085-1 for conduit systems. The fitting is used to connect various threshold rail channels to the foot rail channel along floor or wall surfaces. The fitting attaches to the edge of the channel cover, concealing saw marks, finishing the installation outcome, and speeding up installation.

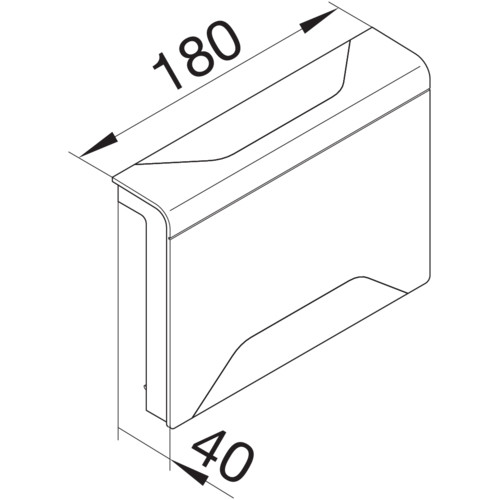

Channel height: 115 mm
Channel width: 20 mm
Material: ABS
Halogen-free: yes
Color: traffic white
RAL color code: RAL 9016
With protective cap: no This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Transition piece for skirting duct (EC001940)
Height baseboard duct115 mm
Depth plinth skirting duct20 mm
Height duct connection115 mm
Width duct connection20 mm
Duct connectionMini/maxi trunking
MaterialPlastic
Halogen freeyes
Colour top coverWhite
RAL-number9016
DecorationNone
Degree of protection (IP)IP40
Impact strengthIK07
Product codes
SAPCLX031
STK1476079
PLC1476079
GTIN/EAN4012740018494
Manufacturer part numberSL2011589016
Vendor material number1476079
Basic information
Package measurements (L x W x H)150 x 35 x 100 mm
Package volume0.525 l
Package weight0.167 kg
Base uniteach
Package units1 / 4 / 384
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
