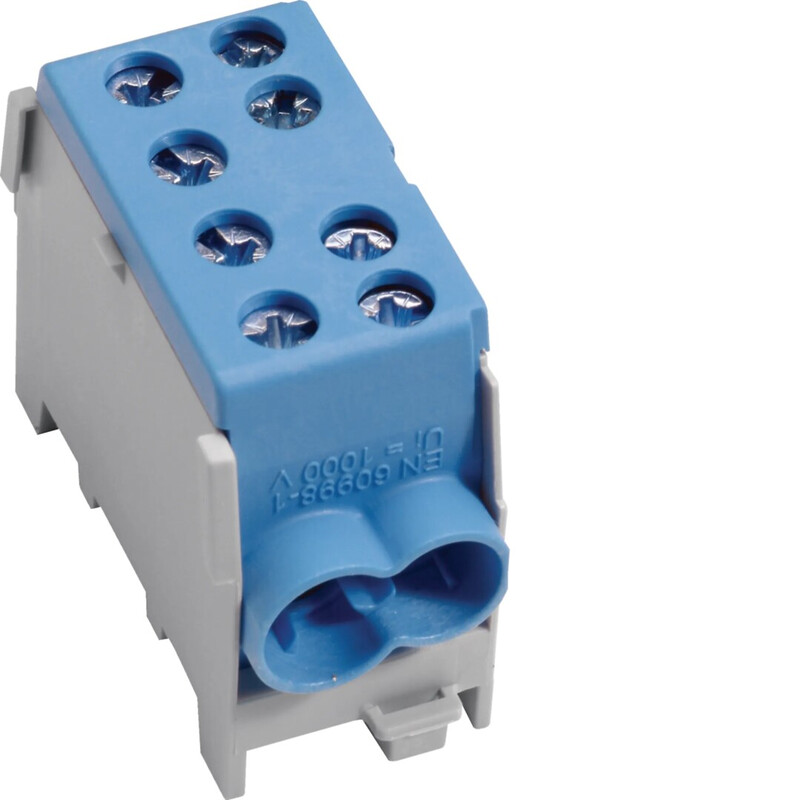

TAPPING CONNECTOR KH35N 2x35/2x25mm2 IP2X BLUE
Product code
1902210
Main line branch terminal 1p. 35²,IP20,N
Branch connector for neutral conductors of supply cables, rated current 100 A, 1-pole, terminals 2x35mm²-2x25mm², IP20, color blue, mounting on DIN rail. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Main line branch terminal (EC000275)
Number of poles1
Nominal current100 A
Connection typeScrewing
Mounting methodDIN rail
Number of inputs2
Number of outputs2
Suitable for solid conductorsyes
Suitable for stranded conductorsyes
Conductor cross section, input10-35 mm²
Conductor cross section, output1.5-25 mm²
Contact safeyes
Height55 mm
Width27 mm
Depth37 mm
Product codes
SAPCFO860
STK1902210
PLC1902210
GTIN/EAN3250613780289
Manufacturer part numberKH35N
Vendor material number1902210
Basic information
Package measurements (L x W x H)37 x 27 x 55 mm
Package volume0.055 l
Package weight0.003 kg
Base uniteach
Package units5 / 50 / 2000
Package contents–
UNSPSC39121421
BrandHAGER
VendorUTU OY
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0004
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
