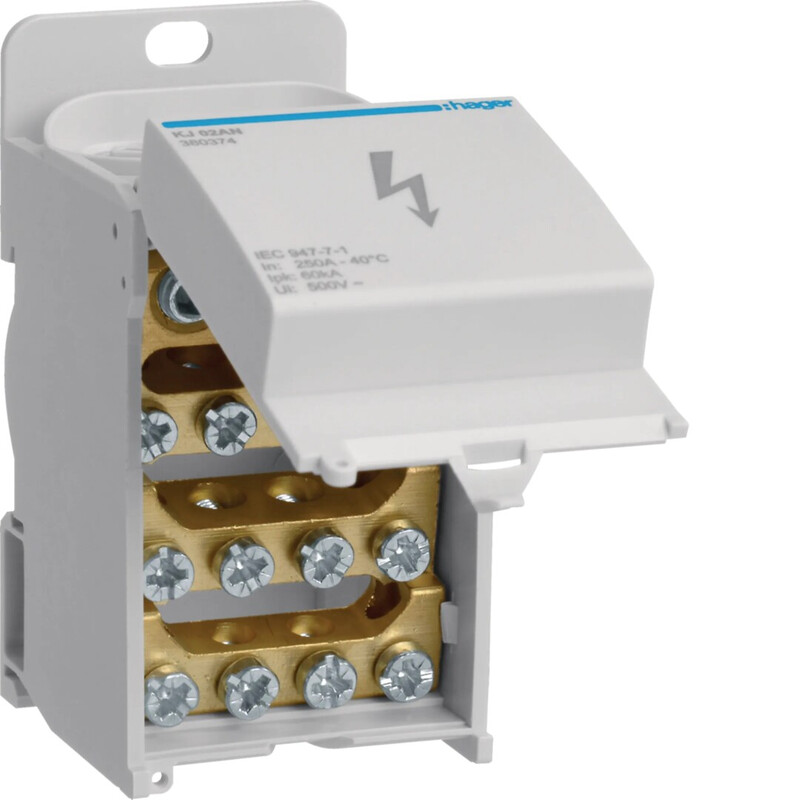

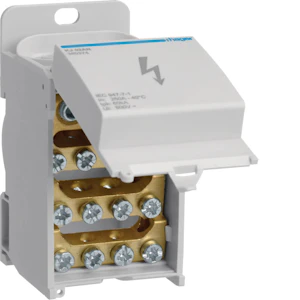

TAPPING CONNECTOR KJ02AN 1P 250A W. LID
Product code
1902221
Branch connector 250A with removable contact protection cover, 1-pole, terminals for copper conductors 1x25-95²/1x1.5-35²/4x1.5-10²/8x1.5-16². Mounting on DIN rails in mounting enclosures and electrical panels. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Distributor assembly terminal blocks (EC001894)
Height91 mm
Width45 mm
Depth51 mm
Max. rated current250 A
Number of poles1
Conductor cross section flexible (fine-strand) with cable end sleeve1.5 - 95 mm²
Conductor cross section solid (solid, stranded)1.5 - 95 mm²
Number of clamp positions per pole14
With PE-railno
With N-railno
Product codes
SAPCFO864
STK1902221
PLC1902221
GTIN/EAN3250613803742
Manufacturer part numberKJ02AN
Vendor material number1902221
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.3 l
Package weight0.108 kg
Base uniteach
Package units4 / 60 / 1080
Package contents–
UNSPSC39121421
BrandHAGER
VendorUTU OY
Documents (5)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0412
GWP, uniteach
Source for GWP dataEPD
