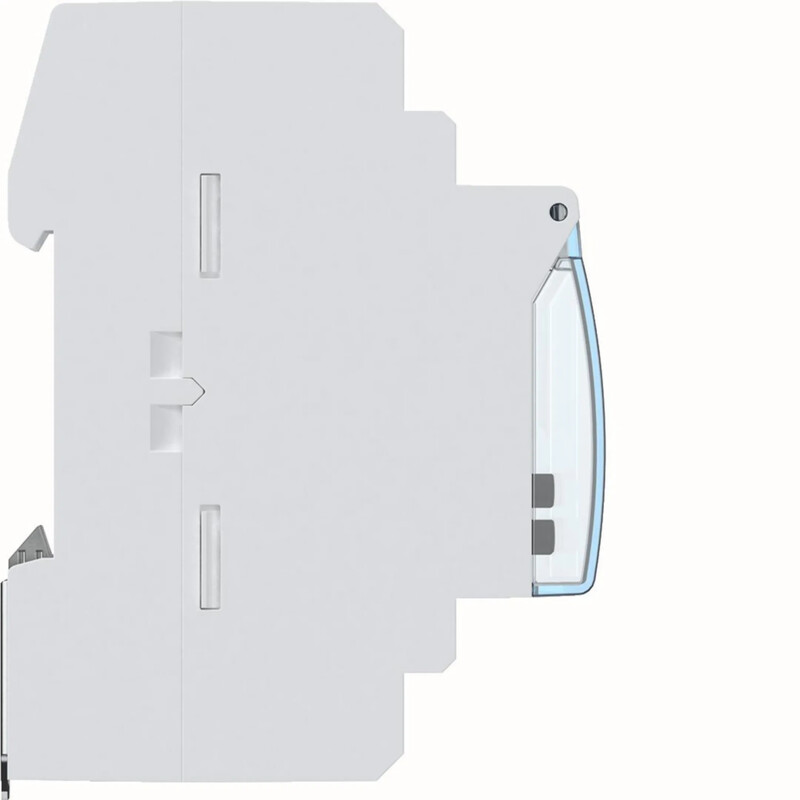

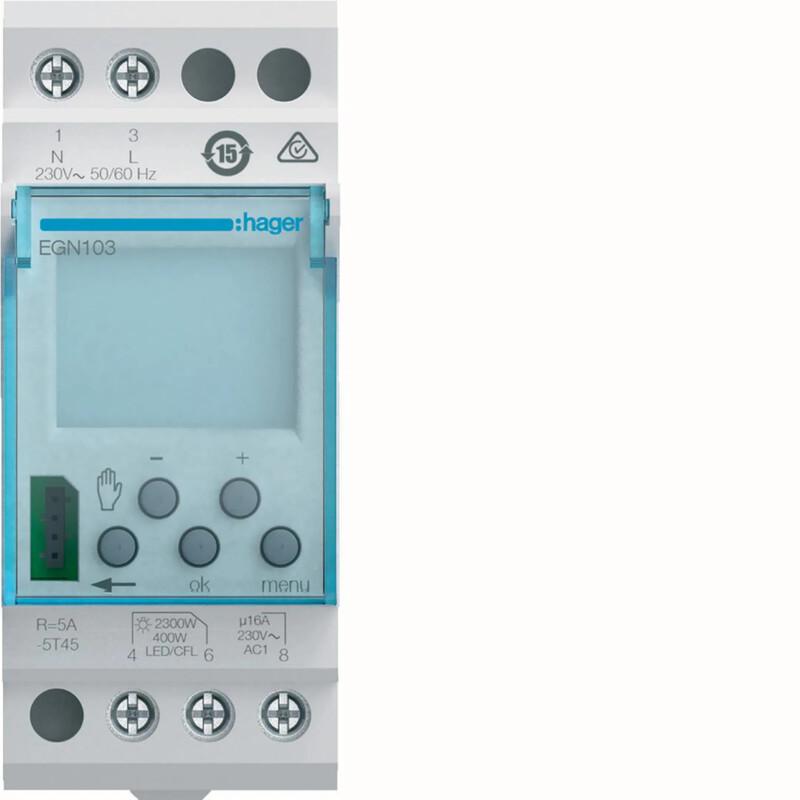

TIME SWITCH DIGITAL CRONOTEC EGN103 1CH/16A 2M DIN
Product code
2614206
Digital weekly timer for scheduled load control. By connecting a programming key utilizing Bluetooth technology (accessory) to the clock, you can create timer programs via a mobile app and store them in the myHager cloud service. Temporary and permanent forced control possible via device buttons. Clear bar display on digital display for observing the active program. Summer and winter time updates automatically. Backup operation for approximately 5 years. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Digital time switch for distribution board (EC002305)
Mounting methodDIN rail
Number of channels1
Supply voltage230-230 V
Voltage type (supply voltage)AC
Frequency supply voltage50-60 Hz
Autonomy in hours43800
Autonomy in years5
Accuracy per day1.5 s
Text guidance in displayno
External programmingyes
With memory cardno
60 min programyes
24 h programyes
Weekly programyes
Annual programno
Product codes
SAPCMV346
STK2614206
PLC2614206
GTIN/EAN3250618502435
Manufacturer part numberEGN103
Vendor material number2614206
Basic information
Package measurements (L x W x H)95 x 58 x 80 mm
Package volume0.441 l
Package weight0.15 kg
Base uniteach
Package units1 / 48 / 1152
Package contents–
UNSPSC39122208
BrandHAGER
VendorUTU OY
Documents (13)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0666
GWP, uniteach
Source for GWP dataEPD
