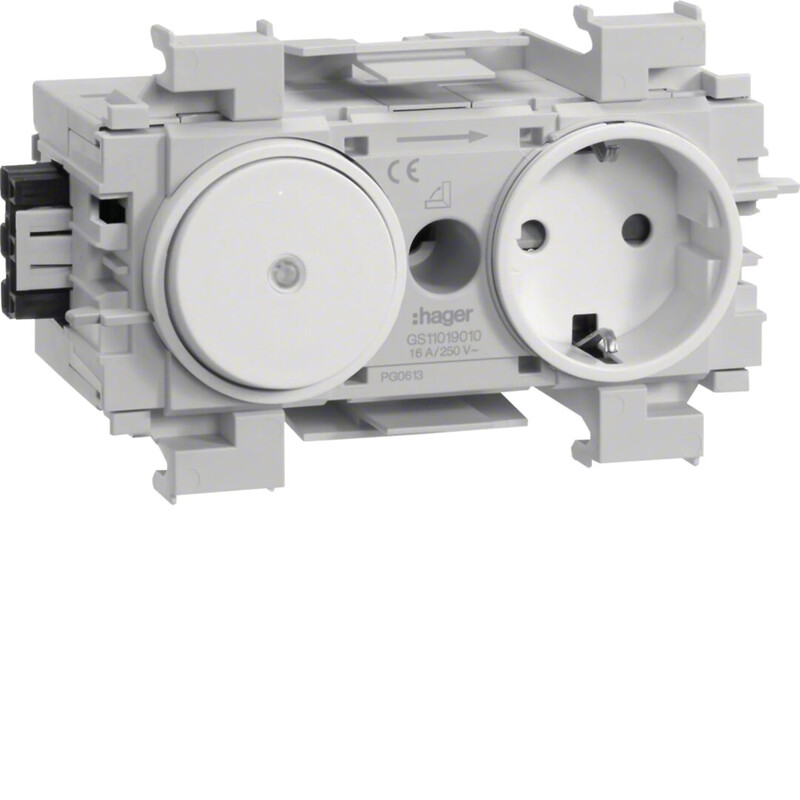

TRUNKING OL TEHALIT.ECOLINE GS1101 2F SO+SW WAWI WHT
Product code
1475940
Channel outlet box with outlet and switch, outlet with touch protection, chainable with other channel outlet modules thanks to a 3-pin plug system. Easy installation on the front edge of the channel profile. Cable connection via spring terminals for 1.5 - 2.5 mm² or via quick-connect plug solution.
Features- mounting method: front edge
- color: traffic white
- RAL color code: 9016
- rated current: 16 A
- rated voltage: 250 V
- frequency: 50/60 Hz
- installation method: conduit installation
- construction: 1 outlet + switch
- plug system: Wago Winsta

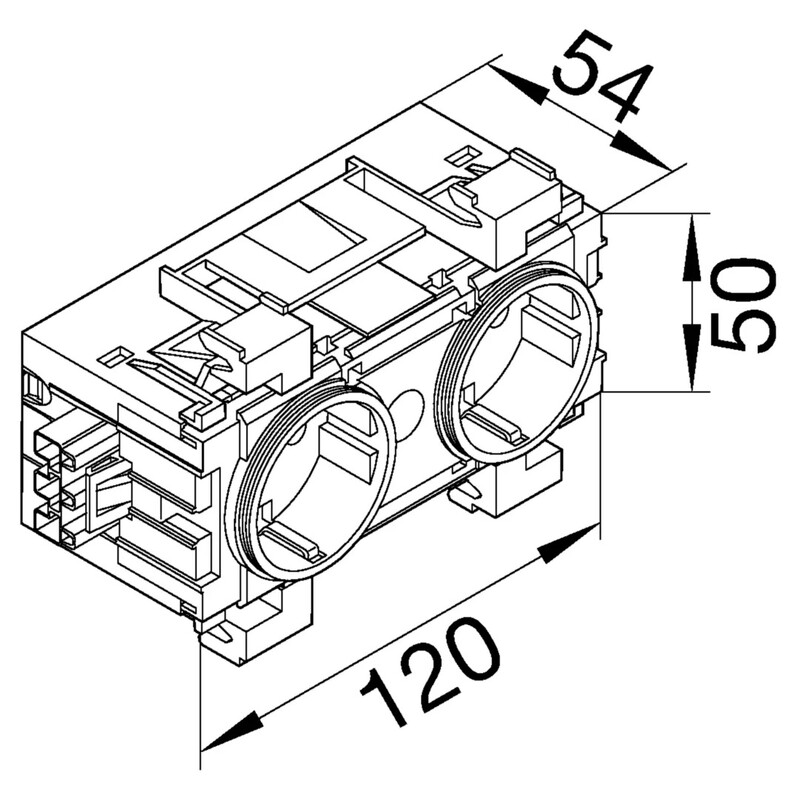

- length: 120 mm
- width of installed product: 50 mm
- depth of installed product: 54 mm
Product details
Technical specifications
Product class (ETIM)Socket outlet (EC000125)
ModelSocket outlet with protective contact CEE 7/3 (type F)
Concurrently switching neutral conductoryes
Protective contactEarthing clips
With signal lampno
Number of modules (module system)2
Number of socket outlets switchable1
Number of phases1
Imprint/indicationNone
Connection typePush-in clamp
With hinged lidno
With enhanced contact protectionyes
Label space/information surfaceyes
ColourWhite
RAL-number (similar)9016
Metallic colourno
Product codes
SAPCLW969
STK1475940
PLC1475940
GTIN/EAN4012740993678
Manufacturer part numberGS11019016
Vendor material number1475940
Basic information
Package measurements (L x W x H)137 x 82 x 66 mm
Package volume0.741 l
Package weight0.24 kg
Base uniteach
Package units1 / 10 / 780
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
Documents (9)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0144
GWP, uniteach
Source for GWP dataEPD
