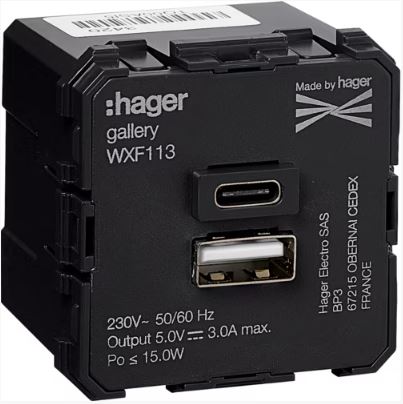

TRUNKING OUTLET GALLERY WXF113 USB A+C 230/5V 3A 2M
Product code
1476698
USB charging outlet type A+C, 230VAC 50/60Hz, 2 modules 45x45 mm, gallerygallery 45 USB charging outlet type A+C, 230V~ 50/60Hz. The device is designed for charging mobile devices and smaller consumer electronics. It is installed in a 45x45 mounting box and equipped with a separately orderable protective cover. Intended for use as a floor outlet fixture. NOTICE! The connectors on this product are located on the bottom surface of the housing. When used in a channel profile, the product must be able to be inserted sideways into the profile due to the position of the connectors. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)USB power supply (EC002949)
Number of ports USB-A1
Operating voltage200-250 V
Frequency50-60 Hz
Max. output current3000 mA
Mounting methodFlush-mounted
ColourWhite
RAL-number9010
Device width45 mm
Device height45 mm
Device depth37 mm
Min. depth of built-in installation box32 mm
Suitable for degree of protection (IP)IP20
Impact strengthIK02
Anti-bacterial treatmentno
Product codes
SAPDFJ407
STK1476698
PLC1476698
GTIN/EAN3250617191111
Manufacturer part numberWXF113
Vendor material number1476698
Basic information
Package measurements (L x W x H)76 x 67 x 64 mm
Package volume0.326 l
Package weight0.08 kg
Base uniteach
Package units1 / 36 / 1152
Package contents–
UNSPSC39131713
BrandHAGER
VendorUTU OY
Documents (5)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0062
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
