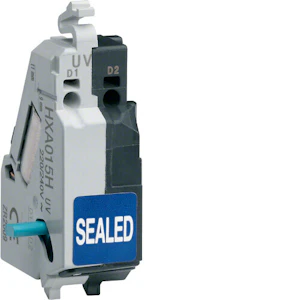

UNDER VOLTAGE RELEASE X160-250 380-450VAC
Product code
3637335
Undervoltage release x160-250 380-450VAC
Undervoltage release for compact circuit breakers with frame sizes x160-x250, 380-450 VAC - the undervoltage release enables remote tripping of the compact and load break switch - one remote release can be installed per compact circuit breaker (at 100% load). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Under voltage coil (EC001022)
Rated control supply voltage AC 50 Hz380-450 V
Rated control supply voltage AC 60 Hz380-450 V
Rated control supply voltage DC0 - 0 V
Voltage type for actuatingAC
Type of electric connectionSpring clamp connection
Number of contacts as normally open contact0
Number of contacts as normally closed contact0
Number of contacts as change-over contact0
Delayedno
Suitable for power circuit breakeryes
Suitable for off-load switchyes
Suitable for motor safety switchno
Suitable for overload relayno
Product codes
SAPAME855
STK3637335
PLC3637335
GTIN/EAN3250613346409
Manufacturer part numberHXA015H
Vendor material number3637335
Basic information
Package measurements (L x W x H)65 x 35 x 30 mm
Package volume0.069 l
Package weight0.1 kg
Base uniteach
Package units1 / 48 / 1152
Package contents–
UNSPSC39121529
BrandHAGER
VendorUTU OY
Documents (5)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.
GWP, uniteach
Source for GWP dataEPD
