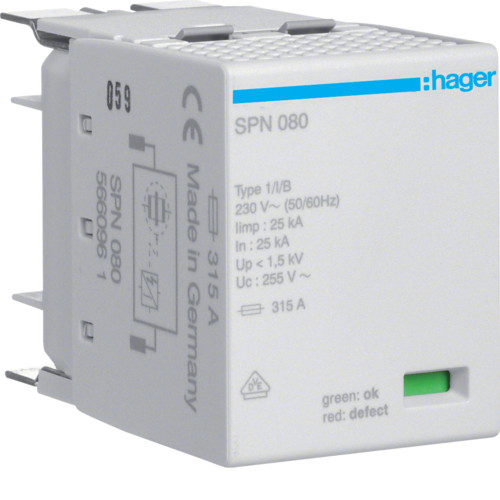

CARTRIDGE 25KA CLASS 1 FOR SPN8XXX
Product code
5803215
Cartridge 25kA class 1 for SPN8xxx
Cartridge 25kA class 1 for SPN8xxx
Product details
Technical specifications
Product class (ETIM)Lightning current arrester for power supply systems (EC000381)
System configuration DCno
System configuration ITyes
System configuration TNyes
System configuration TN-Cyes
System configuration TN-C-Syes
System configuration TN-Syes
System configuration TTyes
System configuration otherno
Number of conductors (without earthing)1
Nominal discharge surge current (8/20)25 kA
Max. continuous voltage AC255 V
Max. continuous voltage DC0 V
Nominal voltage AC230 V
Nominal voltage DC0 V
Voltage protection level1.5 kV
Product codes
SAPAIL681
STK5803215
PLC5803215
GTIN/EAN3250615660961
Manufacturer part numberSPN080
Vendor material number5803215
Basic information
Package measurements (L x W x H)90 x 65 x 40 mm
Package volume0.234 l
Package weight0.28 kg
Base uniteach
Package units1 / 32
Package contents–
UNSPSC39121643
BrandHAGER
VendorUTU OY
