SOCKET OUTLET S.1 2S/16A/IP20 2X 1.5DB UKJ ANT
Product code
2507739

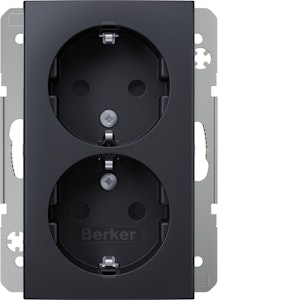

Surface-mountable 2-part socket with low central plate and touch protection for dry location combined installation with separate cover plate. The socket base is equipped with two chain connectors for chaining additional supply or control circuit conductors. Installation in 1.5 size junction boxes. Surface mounting is possible with the separate orderable surface mounting frame 6310821606. Color: anthracite matte. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Socket outlet (EC000125)
ModelSocket outlet with protective contact CEE 7/3 (type F)
Number of active contacts (round)2
Number of active contacts (flat)0
Number of socket outlets switchable0
Imprint/indicationNone
Connection typePush-in clamp
With hinged lidno
With enhanced contact protectionyes
ColourAnthracite
RAL-number (similar)7021
Transparentno
Lockableno
Eject-mechanismno
With function lightingno
With orientation lightingno
Product codes
SAPCFZ106
STK2507739
PLC2507739
GTIN/EAN4011334452119
Manufacturer part number47791606
Vendor material number2507739
Basic information
Package measurements (L x W x H)65 x 85 x 120 mm
Package volume0.663 l
Package weight0.08 kg
Base uniteach
Package units1 / 10 / 50 / 2000
Package contents–
UNSPSC39121308
BrandHAGER
VendorUTU OY
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0105
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
