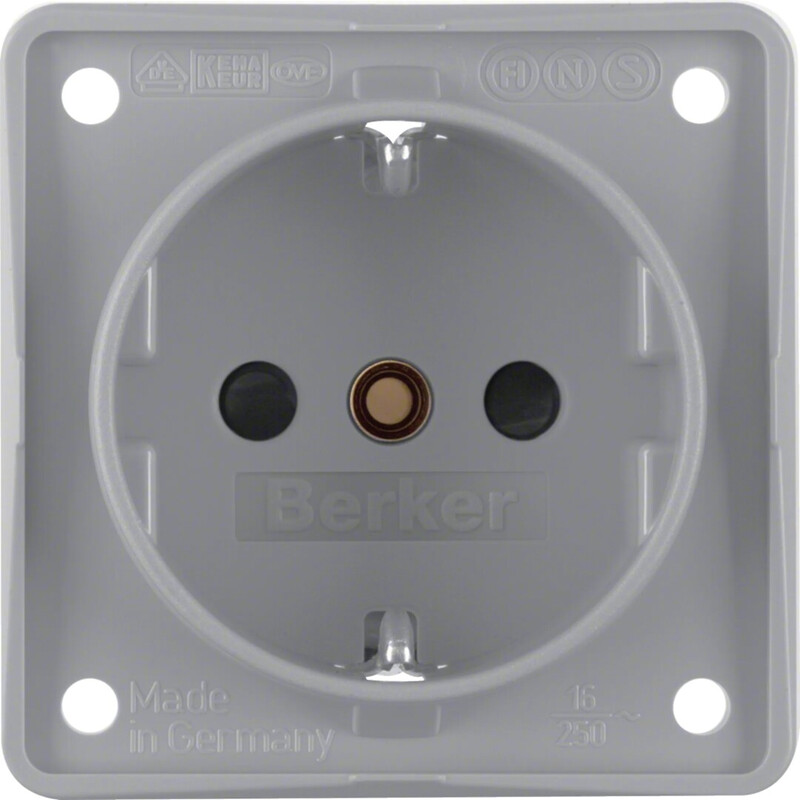

SOCKET OUTLET 1S/16A/230VAC UR GRAY
Product code
2507521
SOCKET OUTLET B.MOBIL GRE
SCHUKO socket for panel mounting with 4-point fixation, installation in damp locations permitted in accordance with IP44 protection class when used with separately ordered seal 91823 and IP44-marked hinged cover plate. - Elevated touch protection - screw connections. Nominal voltage 250 VAC. Nominal current 16 A. Terminals in accordance with IEC 60884-1. Elevated touch protection (child protection) in accordance with IEC 60884-1. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Socket outlet (EC000125)
Number of active contacts (round)2
Number of active contacts (flat)0
With signal lampno
Number of socket outlets switchable0
Number of phases1
Imprint/indicationNone
Connection typeScrewed terminal
With hinged lidno
With enhanced contact protectionyes
Label space/information surfaceno
ColourGrey
RAL-number (similar)7038
Metallic colourno
Transparentno
Lockableno
Product codes
SAPASZ260
STK2507521
PLC2507521
GTIN/EAN4011334240600
Manufacturer part number941952506
Vendor material number2507521
Basic information
Package measurements (L x W x H)55.5 x 55.5 x 41.5 mm
Package volume0.128 l
Package weight0.042 kg
Base uniteach
Package units10 / 200 / 4000
Package contents–
UNSPSC39121308
BrandHAGER
VendorUTU OY
Documents (9)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0025
GWP, uniteach
Source for GWP dataEPD
