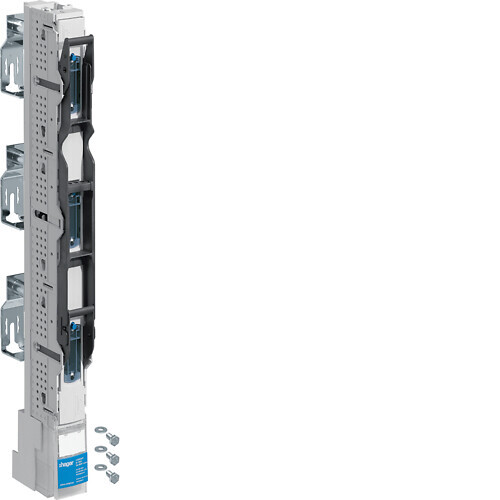

VERTICAL FUSE SWITCH NH00 3P 160A CB185MM ST/HIGH
Product code
3636416
Fuse switch size 00/185 3P M8 f. CTM
Three-pole circuit breaker 3-NH00, 160 A for busbar 185 mm, with bolted connections for outputs, mounted directly on the busbar with high busbar mounts, possibility to install special current transformers LVZ00SE1xx5K1 directly between the circuit breaker and the busbar.
Features- Three-pole switching
- No mounting screws required for busbar installation
Product details
Technical specifications
Product class (ETIM)In-line fuse switch disconnector base (EC001046)
ModelFuse switch disconnector
Double interruptingno
Rated permanent current Iu160 A
Distance between rail centre, 40 mmno
Distance between rail centre, 50 mmno
Distance between rail centre, 60 mmno
Distance between rail centre, 100 mmno
Distance between rail centre, 185 mmyes
Max. rated operation voltage Ue AC690 V
Conditioned rated short-circuit current Iq120 kA
Type of electrical connection of main circuitScrew connection
Number of poles3
Construction size fuse insertNH00
Release indicationNone
Product codes
SAPALZ982
STK3636416
PLC3636416
GTIN/EAN4049857124602
Manufacturer part numberLVSGW00TSPX
Vendor material number3636416
Basic information
Package measurements (L x W x H)450 x 50 x 145 mm
Package volume3.263 l
Package weight1.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121617
BrandHAGER
VendorUTU OY
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)53.6184
GWP, uniteach
Source for GWP dataEPD
