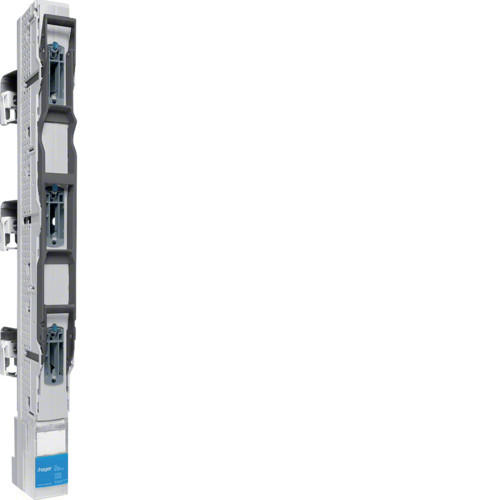

VERTICAL FUSE SWITCH NH00 3P 160A CB185MM ST/HOOK
Product code
3636412
Fuse switch vert. size 00/185 3P M8
3-pole NH00 circuit breaker, 160 A for busbar 185 mm, with bolted connections for outputs, low-profile busbar mounts for direct mounting to the busbar.
Features- 3-pole switching
- No busbar mounting screws required
Product details
Technical specifications
Product class (ETIM)In-line fuse switch disconnector base (EC001046)
ModelFuse switch disconnector
Double interruptingno
Rated permanent current Iu160 A
Distance between rail centre, 40 mmno
Distance between rail centre, 50 mmno
Distance between rail centre, 60 mmno
Distance between rail centre, 100 mmno
Distance between rail centre, 185 mmyes
Max. rated operation voltage Ue AC690 V
Conditioned rated short-circuit current Iq120 kA
Type of electrical connection of main circuitScrew connection
Number of poles3
Construction size fuse insertNH00
Release indicationNone
Product codes
SAPALZ978
STK3636412
PLC3636412
GTIN/EAN4049857124497
Manufacturer part numberLVSG00SPX
Vendor material number3636412
Basic information
Package measurements (L x W x H)450 x 50 x 145 mm
Package volume3.263 l
Package weight1.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121617
BrandHAGER
VendorUTU OY
