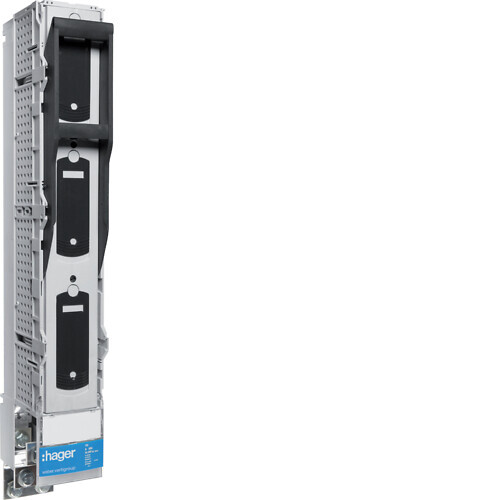

VERTICAL FUSE SWITCH NH3 3P 1000A CB185MM 2XM12 CT
Product code
3636423
Disconnector vertical NH3 1000A M12
Disconnector for load, size 3, for busbar 185 mm.
Features- Fixed disconnector blades, 1000 A
- Suitable for use as a feed unit
- 3-pole connection
- Each output secured with two M12 screws
- No touch protection cover for connection space
- No connection screws for busbar mounting
Product details
Technical specifications
Product class (ETIM)In-line fuse switch disconnector base (EC001046)
ModelFuse switch disconnector
Double interruptingno
Rated permanent current Iu1000 A
Distance between rail centre, 40 mmno
Distance between rail centre, 50 mmno
Distance between rail centre, 60 mmno
Distance between rail centre, 100 mmno
Distance between rail centre, 185 mmyes
Max. rated operation voltage Ue AC690 V
Conditioned rated short-circuit current Iq15 kA
Type of electrical connection of main circuitScrew connection
Number of poles3
Construction size fuse insertNH3
Release indicationNone
Product codes
SAPAMN788
STK3636423
PLC3636423
GTIN/EAN4049857122769
Manufacturer part numberLVTG1000CP
Vendor material number3636423
Basic information
Package measurements (L x W x H)755 x 103 x 215 mm
Package volume16.719 l
Package weight7.6 kg
Base uniteach
Package units1 / 50
Package contents–
UNSPSC39121617
BrandHAGER
VendorUTU OY
