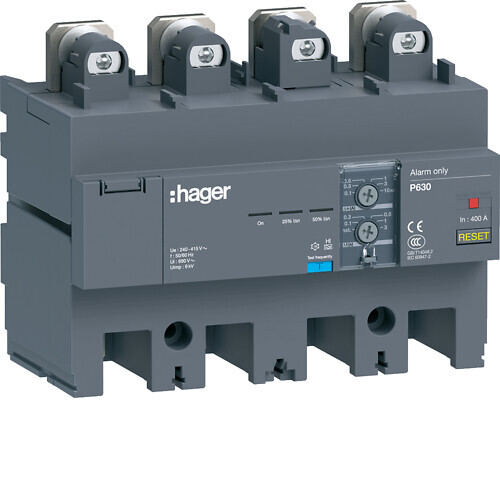

RCD BLOCK P630 4P 400A 0.1-10A ALARM
Product code
3637866
Residual current device for alarm operation p630 4-pole set to 400A Idn. 100mA - 10A. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) module (EC002297)
Nominal voltage220-415 V
Nominal current400 A
Rated fault current adjustableyes
Rated fault current0.1-10 A
Max. delay time3000 ms
Delay adjustableyes
Number of poles4
Leakage current typeA
Surge current capacity3 kA
Frequency50/60 Hz
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp6 kV
Power loss21.7 W
Anti-nuisance tripping versionyes
With interlocking deviceyes
Product codes
SAPDAG665
STK3637866
PLC3637866
GTIN/EAN3250613150952
Manufacturer part numberHBW400L
Vendor material number3637866
Basic information
Package measurements (L x W x H)145 x 185 x 120 mm
Package volume3.219 l
Package weight3.278 kg
Base uniteach
Package units1 / 102
Package contents–
UNSPSC39121308
BrandHAGER
VendorUTU OY
Documents (6)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)176.7355
GWP, uniteach
Source for GWP dataEPD
